| Title | Analysing nanopore data |
| Authors | Sam Nicholls (@samstudio8) and Nick Loman (@pathogenomenick) |
| Last Updated | October 2nd 2018 |
Orgnanise yourselves into groups.
- Kefir FASTQ (sequencing by Josh Quick)
kraken2database instructions
As you saw in our morning demonstration, we handled the problem of basecalling the nanopore squiggles for you, using guppy: Oxford Nanopore's GPU-accelerated basecaller.
We provide the sequenced reads as FASTQ.
Don't forget, the FASTQ contains both sequence and associated per-base quality scores -- so your yield is about half of that of the file size. You may notice the reads are pretty long! They're also of variable length.
Before we do anything, we'll want to get an idea of how good our sequence data is (especially since it was prepared by two bioinformaticians).
For nanopore data, there's a handy package for generating statistics and plots, aptly named NanoPlot. Other packages are available.
If you've worked with Illumina short-read data, you may be familiar with FastQC, which doesn't work with long-read data and panics about the quality.
NanoPlot -p ebame18 -o ebame18_nanoplot/ -t 12 --fastq_rich ebame18.fastq
--fastq_rich instructs NanoPlot to generate summary information from the FASTQ itself.
This is possible as each read header is encoded with some metadata concerning the read.
Use scp to copy the new directory to your local machine to inspect the plots.
scp -r <username>@<host>:ebame_nanoplot/ .
- Use
NanoPlotto generate a report from theFASTQ - What is the distribution of read length?
- What is the distribution of read quality?
- What is the average error rate? You can convert
phredscores to a probability with10^(-Q/10)
As a means to broadly and quickly inspect the contents of the sample, we can assign taxa to the sequenced reads using kraken2. Given a library of sequenced genomes with known taxonomy (such as all of RefSeq), kraken2 breaks up the sequences into k-mers (DNA substrings of length k), and keeps an index of all taxa associated with that k-mer.
By default kraken2 will index all observed 35-mers.
We've already built a database beforehand, and you downloaded it just before our mid-morning break. Our database contains all of the archaea, bacteria, fungi, protozoa, viral sequences from NCBI RefSeq. As well as UniVec_Core - a set of sequences that are useful for screening for contaminants such as common sequencing library adaptors and cloning vectors.
It's worth noting that the database we've provided is reasonably large (30 GB), and kraken2 will load this database into RAM to conduct taxonomic assignments.
If you're short of resources, you could split up your database and run kraken2 multiple times; alternatively, you can reduce the number of k-mers in your index.
The latter option will drastically reduce the size of your database, representing only a small percentage of the original observed k-mers.
This will come at the expense of some accuracy, though the default 8 GB "minikraken" database can provide a good first-pass (it doesn't index any k-mers from eukaryotes, though).
kraken2 --db kraken2-microbial-fatfree --threads 12 ebame18.fastq --report ebame18.report.txt > ebame18.kraken.txt
The output that we've redirected to ebame18.kraken.txt will show the classification of each input sequence, as well as some metadata on the k-mers that were used to make that decision.
The ebame18.report.txt is a more general overview that aggregates the classifications.
We can use some more command line magic to sort and filter the kraken2 report.
sort -k2 -nr ebame18.report.txt | less
# Sort by abundance and filter by genus, count with grep -c
sort -k2 -nr ebame18.report.txt | grep "\sG\s"
# Filter by species
sort -k2 -nr ebame18.report.txt | grep "\sS\s"
It's important to note that kraken2 will do its best to assign taxonomy to your sequences, even from just a few k-mers.
We discussed the presence of Campylobacter jejuni (NCBI ID 197) in our mystery sample, which might make one think twice about consuming it. Yet only one read was given this classification.
We can find more about that read with some awk and the non-report kraken2 file:
awk '$3 == 197 {print $0}' ebame18.kraken.txt
# C f0c49900-01ed-4912-98b7-3c8b50437f39 197 3158 0:918 197:5 0:2201
The final column in this output describes how k-mers across the read were assigned.
Here, we see that kraken2 failed to find a taxon for the first 918 k-mers (0:918, recalling that ID 0 is used for the unassigned taxon), followed by just 5 k-mers for C. jejuni and 2201 more unassigned k-mers.
So, the read was assigned to C. jejuni, despite just 0.16% of the k-mers being assigned to it -- or indeed at all!
I wrote a small script to drop any result for a read that had fewer than 25% of its k-mers assigned, and found we could reduce the number of unique taxa for the mystery sample from 398, to 53.
Be aware of this when making inference based on the kraken2 report alone.
For some further reading, somebody recommended krakenuniq https://github.com/fbreitwieser/krakenuniq to help avoid this pitfall.
- How many species are present in the sample?
- What are the dominant species?
- What is the likely source of our mystery sample?
Classifying the reads provides some insight to the underlying community, but for biological inference we need more detail, and so we will attempt to reconstruct the genomic structures.
We can reconstruct larger structures from the sequenced reads by leveraging overlaps in the DNA sequences to assemble reads into larger fragments. Through minimap2 and miniasm this can be achieved in reasonable time.
minimap2 and miniasm were written by Heng Li (who also started the samtools project) and are designed for fast mapping and assembly of noisy long reads, overcoming some of the assumptions made by tools designed for very-high quality short read sequences.
minimap2 is an exhaustive alignment approach, performing pairwise alignment of all possible sequenced read pairs, as a means to enumerate all possible overlaps.
minimap2 is easy to use and its parameters are set automatically based on the -x preset. Here we specify ava-ont (all-versus-all: maps each read against every other read, Oxford Nanopore reads).
We pipe the stdout through gzip (that -1 is a one -- specifying a fast compression), as the PAF is a plaintext format and can become quite large.
Note the output file is PAF (pairwise alignment format), not SAM.
minimap2 -x ava-ont -t 12 Kefir_RBK.fastq Kefir_RBK.fastq | gzip -1 > Kefir_RBK.paf.gz
Given the reads and their overlaps, we can now use miniasm to perform assembly.
The tools are fast as they avoid error correction of the reads.
miniasm -f Kefir_RBK.fastq Kefir_RBK.paf.gz > Kefir_RBK.contigs.gfa
miniasm leverages the overlaps found by minimap2 to assemble reads into contigs (contigious DNA fragments).
The output from miniasm is a GFA (graphical fragment assembly format).
That is, we not only have the assembled contigs, but information on how those contigs overlap with other contigs -- a graph.
It's of note that representing DNA sequences and their overlaps in the form of the a graph is a new area of research for assemblers, and for storing multiple reference genomes.
As a result, many tools are not yet compatible with GFA files, so we'll use a little command line magic to extract the contigs as a FASTA.
awk '/^S/{print ">"$2"\n"$3}' Kefir_RBK.contigs.gfa | fold > Kefir_RBK.contigs.fa
It's important to remember that this assembly represents a consensus, often with species specificity, but not necessarily. Closely related sequences are often "squashed" and the true population variation (i.e. the haplotypes) is lost.
- How big is the assembly? How many contigs?
- What is the largest contig?
You probably want to see your graph.
Luckily for you, Ryan Wick has written a nifty tool called Bandage that will read a GFA and draw you a pretty picture.
Install Bandage (https://rrwick.github.io/Bandage/) to your local machine and copy across your contigs FASTA.
- What does the graph look like?
- What structures do we have, what has been assembled?
- How good do you think our consensus is?
As mentioned, miniasm is fast as it avoids any form of error correction, so you'll expect the consensus sequence error to be as least as high as the underlying read error.
All is not lost, as we can improve the quality of our consensus assembly through polishing.
The intuition behind this is to take your assembled contigs, align the sequenced reads back to them and use the evidence from the reads to correct the contigs.
First we map the reads to our assembled consensus.
Note the minimap2 preset is now -x map-ont (not -x ava-ont), as we want to map our reads to our assembled consensus.
minimap2 -t 12 -x map-ont Kefir_RBK.contigs.fa Kefir_RBK.fastq | gzip -1 > Kefir_RBK.reads-assembly.paf.gz
Now polish:
racon -t 12 Kefir_RBK.fastq Kefir_RBK.reads-assembly.paf.gz Kefir_RBK.contigs.fa > Kefir_RBK.contigs.racon.fa
Earlier, we assigned taxa to our reads. We can assign taxa to our polished contigs in the same way.
kraken --db kraken2-microbial-fatfree --threads 12 Kefir_RBK.contigs.racon.fa > Kefir_RBK.contigs.kraken
- How many taxa are present now at the species level?
- Identify some contigs of interest using your
Bandageplot, what taxon has been assigned to some contigs of interest?
An alternative workflow to analyze raw minION reads with anvi'o to gain quick insights into taxonomy through full-length 16S rRNA gene sequences [5m]
| Title | An alternative workflow to analyze raw minION reads with anvi'o to gain quick insights into taxonomy through full-length 16S rRNA gene sequences |
| Authors | Meren (@merenbey) |
| Last Updated | October 3rd 2018 |
This part describes Meren's quick analysis of the raw reads to get quick and preliminary insights into the content of the sequenced product using full-lenght 16S rRNA genes it contains within minutes using anvi'o.
This quick-and-dirty analysis starts with the following command line, which downloads the FASTQ file for the raw seqeuncing data as it's coming out of minION:
wget https://nanopore.s3.climb.ac.uk/ebame18.fastq
Here is a quick one-liner to turn this FASTQ file into a FASTA file (this is far from the best practice, but acceptable for this particular analysis):
# meren’s lousy attempt:
grep -A 1 '^@' ebame18.fastq | grep -v '^--$' | sed 's/^@/>/g' > ebame18.fa
# an alternative from Frédéric Mahé:
grep --no-group-separator -A 1 '^@' ebame18.fastq | sed 's/^@/>/' > ebame18.fa
# an even better alternative from Frédéric Mahé again:
sed -n '/^@/ {s/@/>/ ; p ; n ; p}' ebame18.fastq > ebame18.fa
# yet another alternative from an anonymous participant
awk '/^@/ {sub("^@", ">") ; print ; getline ; print}' ebame18.fastq > ebame18.faEach of the command lines above does the same thing: convertion the raw FASTQ file to a FASTA file since that's what anvi'o likes to work with. Next, we will simplify deflines in this FASTA file, and remove any read that is less than 5,000 nts:
anvi-script-reformat-fasta ebame18.fa \
--simplify \
-l 5000 \
-o minion.fa
Here I will generate a contigs database:
anvi-gen-contigs-database -f minion.fa \
-o minion.db \
--skip-mindful-splitting \
-n 'Mysterious MinION sample'
This step runs Prodigal to identify open reading frames in these contigs. Most of them will be cut short due to in/del and substution errors resulting in spurious gene calls before polishing, but we do not care since we will rely on a DNA based HMM model to predict 16S rRNA genes in the resulting contigs. Just to note, in this particular case Prodigal identified 40,336 genes. Here are some basic stats from the contigs DB:
Contigs with at least one gene call ..........: 4952 of 4952 (100.0%)
Number of contigs ............................: 4,952
Number of splits .............................: 4,968
Total number of nucleotides ..................: 44,788,918
Gene calling step skipped ....................: False
Splits broke genes (non-mindful mode) ........: True
Desired split length (what the user wanted) ..: 20,000
Average split length (wnat anvi'o gave back) .: 20,589
Now it is time to run the default HMMs ship with anvi'o, which includes single-copy core genes as well as one to identify rRNAs:
anvi-run-hmms -c minion.db \
--num-threads 7 \
--installed-hmm-profile Ribosomal_RNAs
Once this process is done, we can take a quick look at the contigs database and see what it looks like:
anvi-display-contigs-stats minion.db

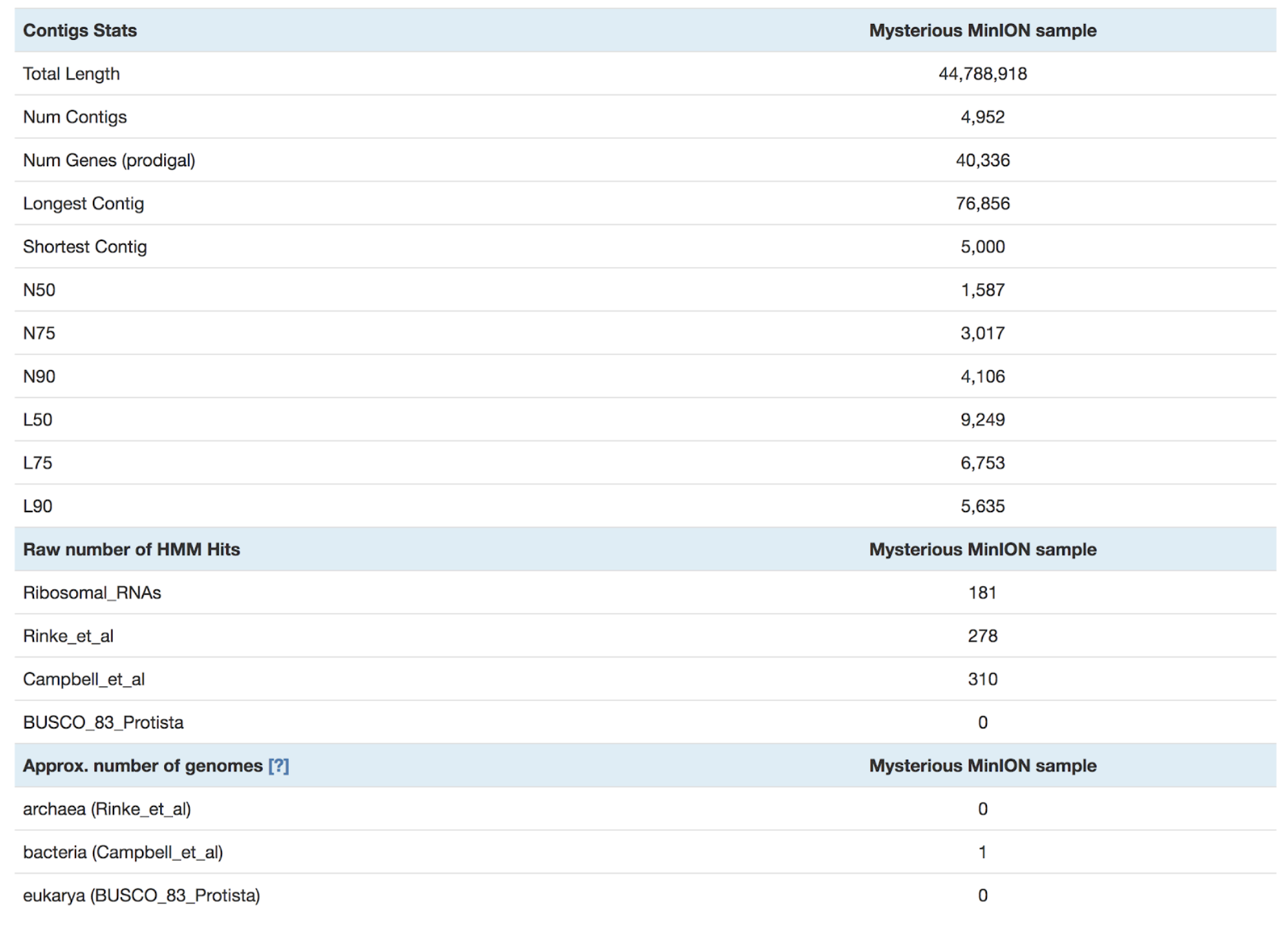

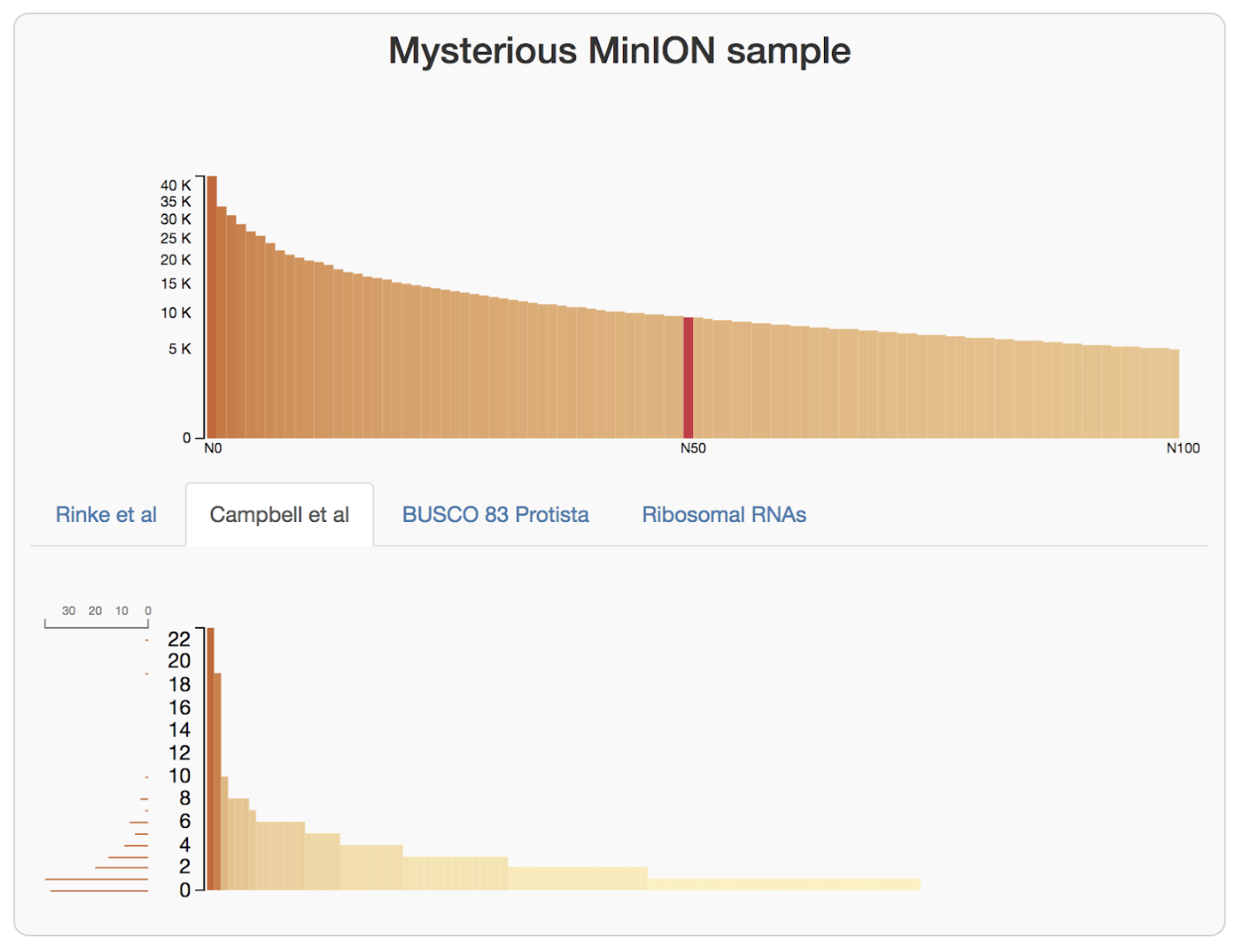

This command opens your browser so you can inspect the basic statistics of your contigs, which will look like this:
Don't let the "approximate genomes" estimation fool you: this estimation relies on the prsesence of single-copy-core genes, which are not identified efficiently in non-polished nanopore reads due to errors that distrupt the gene caller.
Fine. What we can do is to get the 16S rRNA genes out of this contigs database (to avoid any sensitivity/specificity issues, we are asking for 16S rRNA gene seqeunces even if they are identified through the Archaeal HMM):
anvi-get-sequences-for-hmm-hits -c minion.db \
--hmm-source Ribosomal_RNAs \
--gene-names "Bacterial_16S_rRNA, Archaeal_16S_rRNA"
This results in a FASTA file with about hundred sequences. Here is one of them:
TTGAGAGTTGATCCTGGCTCCAGGACGAACGCTGGCGTGCCTAATATACATACAAGTTGAACGTGAAGATTGGTGCTTGCACCAATTTGAAGAAACAACGAACAATTGAAGTAACGCGTGGGAATCTGCCTTTGAGCAGGGGACAACATTTGGAAACGAATGCTAATACCGCATAACAACTTTAAACATAAGTTTTAAGTTTGAAAGATACAGTACATACTCAAAGATGATCCCGCGTTGTATTAGCTAGTTGGTGAGGTAAAGGCTCGCAAGGCGATGATACATAGCCGACCTGGAGGGGTGATAAGCCTACGTGGGACTGGAACACGGCCCAAACTCTCACCACGGGAGACGCGTGGGAATCTTCGGCAATGTGGACGAAAGTCACGACCGAGCAACGCCGCGTAGGTGAAGAAGGTTTTCCGGATCGTAAAATACATTTGGCTGAGAAGAACGTTGGTGAGTGGAAAGCTCATCAAGTGACGGTAACTACCAGAAAGGACGGCTAACTACGTGCCAGCAGCCGCGGTAATACGTAGGTCGAGCGTTATCCAGATTTATTGGGCGTAAAGAGCGCGGTGGTTTTATTAAAGTCTGGTGGTAAAGGCAGTGGCTCAACCATTGTATGCATTGGAAACTGGTAGACTTGAGTGCAGGAGAGGAGGGAGTGGAATTCCATGTAGCGGTGAAATGCGTAGATATATGGAGGGAACACCGGTGGCGAAAGCGGCTCTCTGGCCTGCCGAAAAACTGACACTGAGGCTCGAAGCGTGGGGAGCGGCAGGATTAGATACCCTGGTAGTCACGCCGTATGACGATGGAAGTGCTAGATGTAGGGAGCTATAAGTTCTCTGTATCGCAGCTAACGCAATAAGCACTCCGCCTGGGAGTACGACCGCAGAGTTGAAACTCAGAAAGGGAATTGACGGGGGCCCACTGGCGGTGGAGCATGTGGTTTAATTCGAAGCAACGCGAAGAACCTTACCAGGTCTTGACATGCTCGTGCTATTCTAGAGATAGGAAGTTCCTTCGGGACACGGGATACGGGTGGTGCATGGTTGTCGTCAGCTCGTGTCATTGAGATGTTGGGTTAGGTCCCGCAACGAGCACCAACCCCTATTGTTAGTTACCATCATTAAGTTGGGCACTCTAACGAGACTGCCGGTGATAAACCGGAGGAAGGTAAGGATGACGTCAAATCATCATGCCTTATGACCTGGAGCTACACACGTGCTACAATGGATGGTACAACGAGTCGCGAGAGACGGTGATGTTTAGCTAATCTCTTGAAACCATTCTCGGATTCGGATTGTAGGCTGCGCTTTCGCCTACATGATCCGGAATCGCTAATAGTAATCGCGGATCAGCACGCCGCGGTGAATGCGTTCCCCGGGCCTTGTACACACCGCCCGTCACACCACGGGAGTTGGGGTACCCGAAGTAGGTTGCCCACAACCGCAAGGAGGCGCTTCTAAGGAGATAAAGACCGATGACTGAGGGTGAAGTCTTAACCGAGTAGCCGTATCGGAAGGTGCGGCTGGATCACT
If you BLAST this sequence on the NCBI, you get 90% identity to Lactococcus lactis subsp. cremoris. Although it took only 5 minutes to get to this point, Meren does not tell anything during the workshop to not ruin the fun for anyone. The rest are here

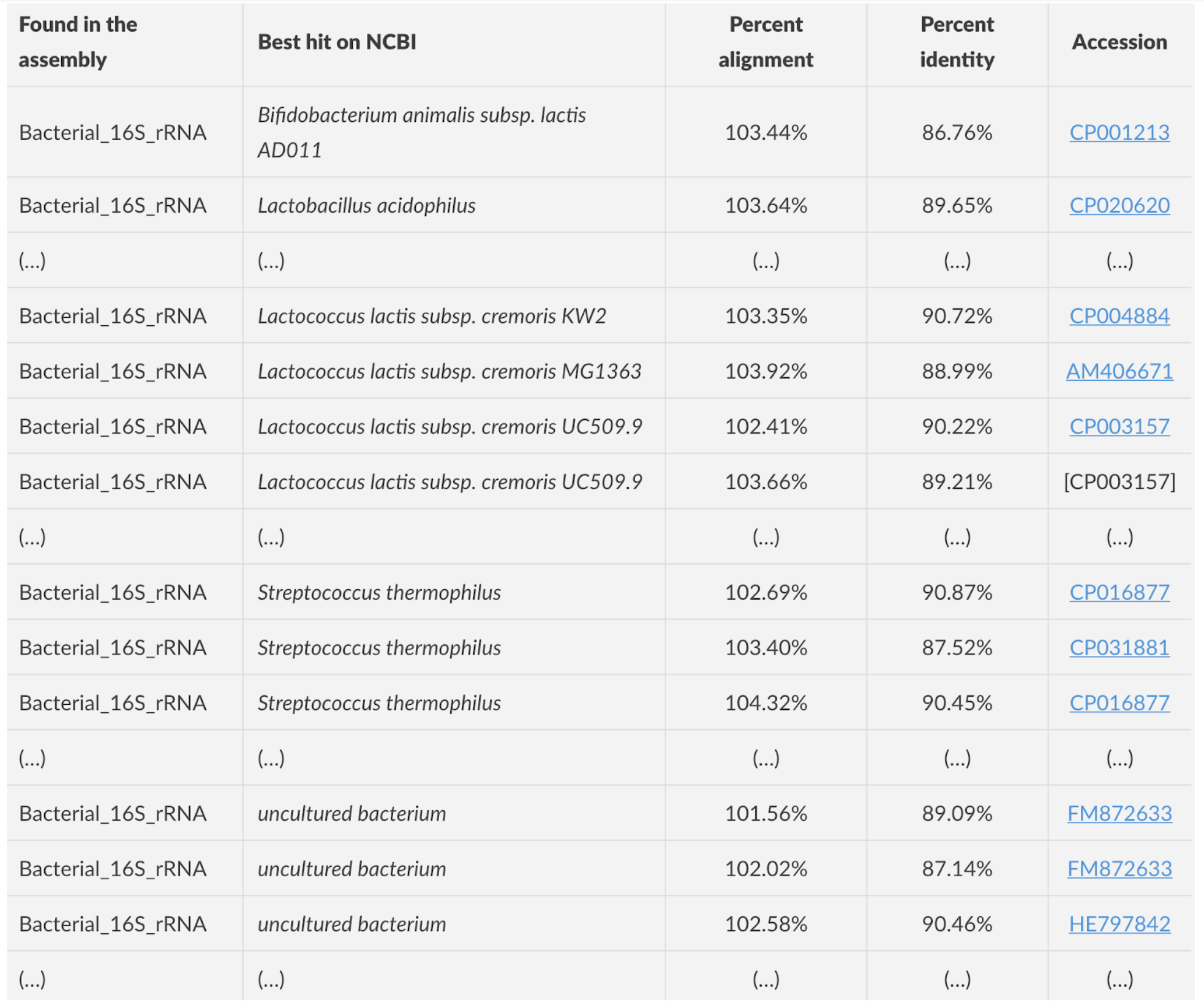

Meanwhile I BLAST-searched every full-length 16S sequence we recovered, and formatted the output using this script. Here is a glimpse at the results (the percent identity goes above 100%, which is a silly bug in my script that I was too lazy to fix):
The results nicely reflect the ~10% error rate assuming databases will very likely contain strains that hit 100% to what you would expect to find in over-the-counter products.
I would have liked to use amino acid sequences for single-copy core genes to do some quick phylogenomic analyses, however, the interruptions to the gene calling process often result in prematurely finalized gene calls, that does not help us do much with the amino acid sequences we get from that. Some polishing may have changed it dramatically!
If you want to practice anvi’o, you could consider putting the assembled genomes into the context of type strains found in the NCBI to see to what extent you find them to be identical to what we think they are through the pangenomic workflow.
