MEM.Zone Dashboards

This is a solution of dashboards and reports, for Microsoft Endpoint Configuration Manager.

• _Dashboard - Software Updates dashboard is navigable, independent of Software Update Groups and comes with an array of filtering options and sub-reports.
• Application - Compliance by Collection standalone report is used to monitor application compliance by collection.
• Baseline - Compliance by Collection standalone report is used to monitor baseline compliance by collection.
• Bitlocker - Compliance by Collection (MBAM) standalone report is used to monitor Bitlocker (MBAM) compliance and non-compliance reasons.
• Bitlocker - Compliance by Collection standalone report is used to monitor Bitlocker compliance, key upload and non-compliance reasons.
• Operating System - Version Compliance by Collection standalone report is used to monitor Feature Update or Windows Version Compliance.
• Operating System - Windows 11 Readiness by Collection standalone report is used to check Windows 11 Upgrade Readiness.
• Package - Compliance by Collection standalone report is used to monitor package compliance by collection.
• Package - Compliance by Deployment standalone report is used to monitor package compliance by deployment.
• Site - Alerts sub-report is used to monitor critical alerts.
• Software Update - Compliance by Collection sub-report is used to monitor software update compliance by collection.
• Software Update - Compliance by Device sub-report is used to monitor software update compliance by device.
• Software Update - Scan Status by Collection sub-report is used to monitor software update scan status by collection.
• Software Update - Update Point Sync Status sub-report is used to monitor software update update point sync status.
• Software Update - CU Compliance by Collection standalone report is used to monitor software update compliance by collection.

Notes All sub-reports can be run standalone. The installation can be done manually or via the included PowerShell installer.

Main page

See main.

Latest release

See releases.

Changelog

See changelog.

Help

See help.

Credit

• Adam Weigert ufn_CM_GetNextMaintenanceWindow

Dashboards and Reports

• _Dashboard - Software Updates (Main Dashboard Report)
• Application - Compliance by Collection
• Baseline - Compliance by Collection
• Bitlocker - Compliance by Collection (MBAM)
• Bitlocker - Compliance by Collection
• Operating System - Version Compliance by Collection
• Operating System - Windows 11 Readiness by Collection
• Package - Compliance by Collection
• Package - Compliance by Deployment
• Site - Alerts
• Software Update - CU Compliance by Collection
• Software Update - Compliance by Collection
• Software Update - Compliance by Device
• Software Update - Scan Status by Collection
• Software Update - Update Point Sync Status

Navigation Tree

.
+-- (D) _Dashboard - Software Updates
    +-- (C) Device Update Compliance
    |   +-- (R) Software Update - Compliance by Collection
    |       +-- (R) Software Update - Compliance by Device
    |
    +-- (C) Missing updates by Classification
    |   +-- (R) Software Update - Compliance by Collection
    |       +-- (R) Software Update - Compliance by Device
    |
    +-- (C) Device Update Agent Scan States
    |   +-- (R) Software Update - Scan Status by Collection
    |
    +-- (C) Overall Update Groups Compliance
    |
    +-- (C) Top 5 Devices with Missing Updates by Classification
    |   +-- (R) Software Update - Compliance by Collection
    |       +-- (R) Software Update - Compliance by Device
    |
    +-- (T) Critical Alerts
    |   +-- (R) Site - Alerts
    |
    +-- (T) Last Successful Synchronization Time
        +-- (R) Software Update - Update Point Sync Status
+-- (R) Application - Compliance by Collection
+-- (R) Baseline - Compliance by Collection
+-- (R) Bitlocker - Compliance by Collection * Bitlocker (MBAM)
+-- (R) Bitlocker - Compliance by Collection * Bitlocker
+-- (R) Operating System - Version Compliance by Collection
+-- (R) Operating System - Windows 11 Readiness by Collection
+-- (R) Package - Compliance by Collection
+-- (R) Package - Compliance by Deployment
+-- (R) Software Update - CU Compliance by Collection

## Legend
'()'  - 'to' or 'from' navigation element
'(D)' - Dashboard
'(R)' - Report
'(C)' - Chart
'(T)' - Text

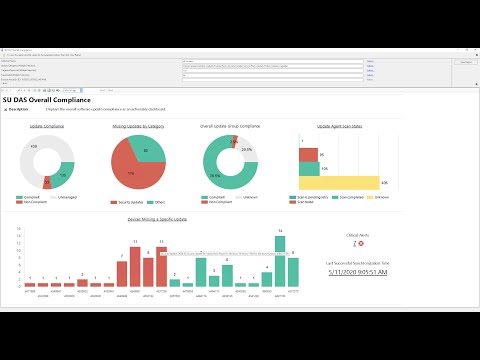

Preview (Not up-to-date)

This preview is not up-to-date, it represents version 2.0.0. A new preview will be available shortly.

Prerequisites

Discovery

• l additional user and device discovery attribute
• co additional user and device discovery attribute

Notes Run the user and device discovery after adding the l and co attributes.

Software

• Microsoft Endpoint Management Configuration Manager (ConfigMgr) with Windows Update Services (WSUS) integration.
• Microsoft SQL Server Reporting Services (SSRS) 2017 or above.
• Microsoft SQL Compatibility Level 130 or above.

SQL User Defined Functions (UDF)

• ufn_CM_GetNextMaintenanceWindow helper function (Optional)

SQL SELECT Rights for smsschm_users (CM Reporting)

• ufn_CM_GetNextMaintenanceWindow
• ufn_CM_GetNextMaintenanceWindowForDevice
• ufn_CM_GetNextMaintenanceWindowForCollection
• ufn_CM_DeviceIPAddress
• ufn_CM_DeviceOSInfo
• fnListAlerts
• vSMS_ServiceWindow
• vSMS_SUPSyncStatus

Notes You can find the code that automatically grants SELECT rights to the functions and tables above in the perm_CMDatabase.sql file.

Installation - Automatic

Use the provided PowerShell installer. You can find the standalone repository for the installer here.

## Get syntax help
Get-Help .\Install-SRSReport.ps1

## Typical installation example
#  With extensions
.\Install-SRSReport.ps1 -ReportServerUri 'http://CM-SQL-RS-01A/ReportServer' -ReportFolder '/ConfigMgr_XXX/SRSDashboards' -ServerInstance 'CM-SQL-RS-01A' -Database 'CM_XXX' -Overwrite -Verbose
#  Without extensions (Permissions will still be granted on prerequisite views and tables)
.\Install-SRSReport.ps1 -ReportServerUri 'http://CM-SQL-RS-01A/ReportServer' -ReportFolder '/ConfigMgr_XXX/SRSDashboards' -ServerInstance 'CM-SQL-RS-01A' -Database 'CM_XXX' -ExcludeExtensions -Verbose
#  Extensions only
.\Install-SRSReport.ps1 -ServerInstance 'CM-SQL-RS-01A' -Database 'CM_XXX' -ExtensionsOnly -Overwrite -Verbose

Notes If you don't use Windows Authentication (you should!) in your SQL server you can use the -UseSQLAuthentication switch. PowerShell script needs to be run as administrator. If you have problems installing the SQL extensions run the script on the SQL server directly and specify the -ExtensionsOnly switch. If this still doesn't work check out the Manual Installation Steps.

Installation - Manual

Upload reports to SSRS, update the datasource, grant the necessary permissions and optionally install the helper function.

Upload Reports to SSRS

• Start Internet Explorer and navigate to http://<YOUR_REPORT_SERVER_FQDN>/Reports
• Choose a path and upload the three report files.

Notes Reports must be placed in the same folder on the report server.

Configure Imported Report

• Replace the DataSource in the reports.

Create the SQL Helper Function

The ufn_CM_GetNextMaintenanceWindow is needed in order to display the next maintenance window.

• Copy paste the ufn_CM_GetNextMaintenanceWindow in SSMS
• Uncomment the SMS region and change the <SITE_CODE> in the USE statement to match your Site Code.
• Click Execute to add the ufn_CM_GetNextMaintenanceWindow function to your database.
• Copy paste the perm_CMDatabase.sql in [SSMS](https://docs.microsoft.com/en-us/sql/ssms/
• Click Execute to add the necessary permissions to your database.

Notes You need to have access to add the function and grant SELECT on ufn_CM_GetNextMaintenanceWindow, fnListAlerts, vSMS_ServiceWindow and vSMS_SUPSyncStatus for the smsschm_users (ConfigMgr reporting). If the ufn_CM_GetNextMaintenanceWindow is not present you will get a 'Missing helper function!' instead of the next maintenance window. To resolve the error codes, or get more info, just hover over the table cell.

Build

This repository includes a build script that automates the process of preparing the dashboards and reports for distribution

Build Prerequisites

• PowerShell 5.0 or later
• Internet connection (for downloading latest Install-SRSReport.ps1 and Dependencies)

Instructions

• build/Build-Script.ps1 - The main build script
• build/Build-Config.json - Configuration file with build settings

Build Script

This uses the default Build-Config.json configuration file and creates a versioned zip file in the output/ directory.

.\Build-Script.ps1

## Build with Custom Version override
.\Build-Script.ps1 -Version '6.2.0'

Build Process

• Downloads Install-SSRSReport.ps1 and Dependencies from the latest release
• Cleans sensitive data from reports and SQL files
• Updates version information in all report files and zip file
• Copies the docs folder
• Generates zip distribution file with format MEM.Zone-Dashboards_v[Version].zip

Build Output

• MEM.Zone-Dashboards/ - Distribution files
• output/MEM.Zone-Dashboards_v[Version].zip - Compressed distribution package
