Image-Snap-Shot

Overview

---

This React web application aims at inspiring artistic people to find the image they most like about their favourite topics. I decided to develop this application to train in working with APIs, Javascript, React and learn the syntax and bases of TypeScript.

Webpages

---

The endpoints of the website are:

/

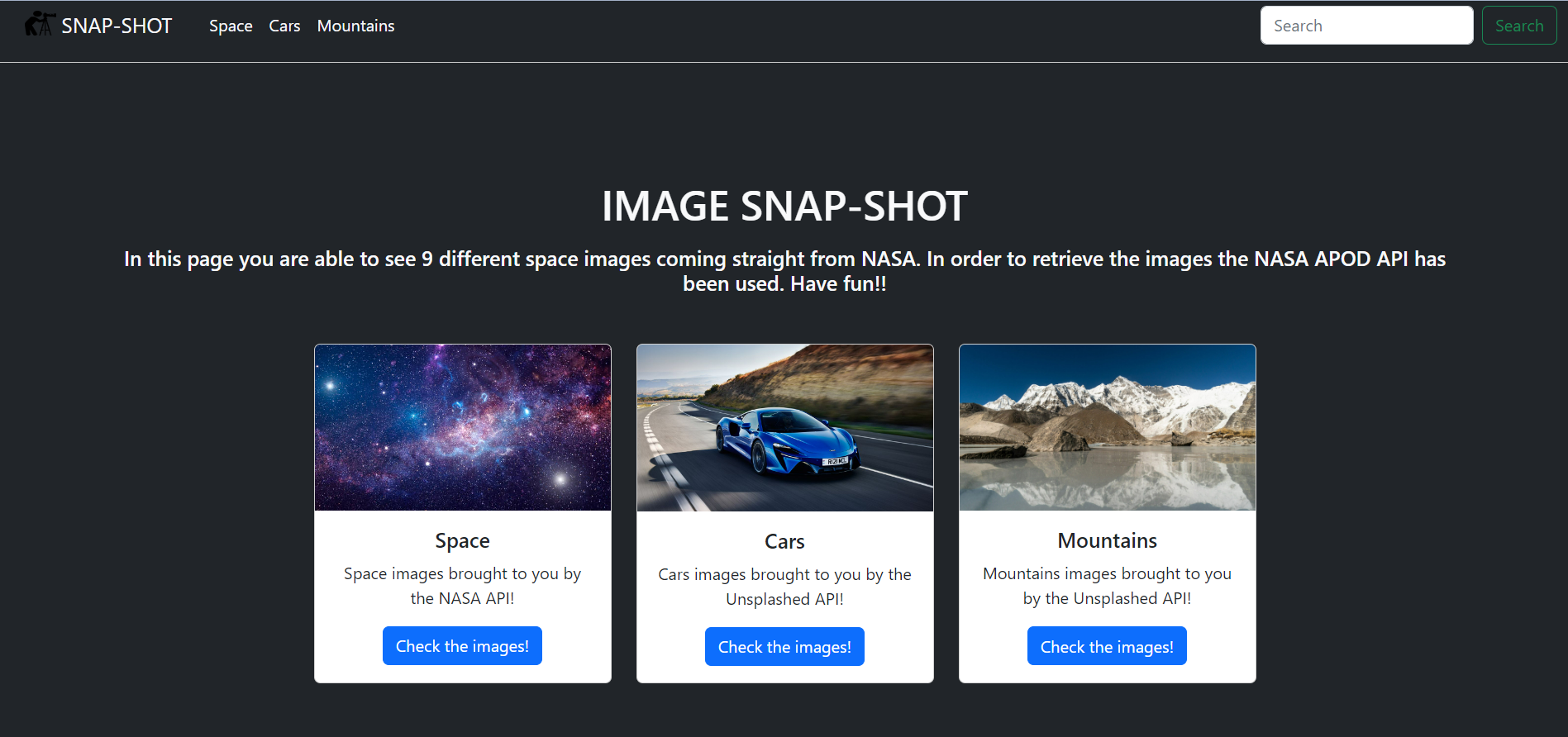

• Description: This endpoint will greet the user with a short introduction to the website and offer the user the oppurtunity to choose with group of images he would like to see
• Modules: Navbar (SearchButton), Body (FirstPageOptions), Footer

/Space

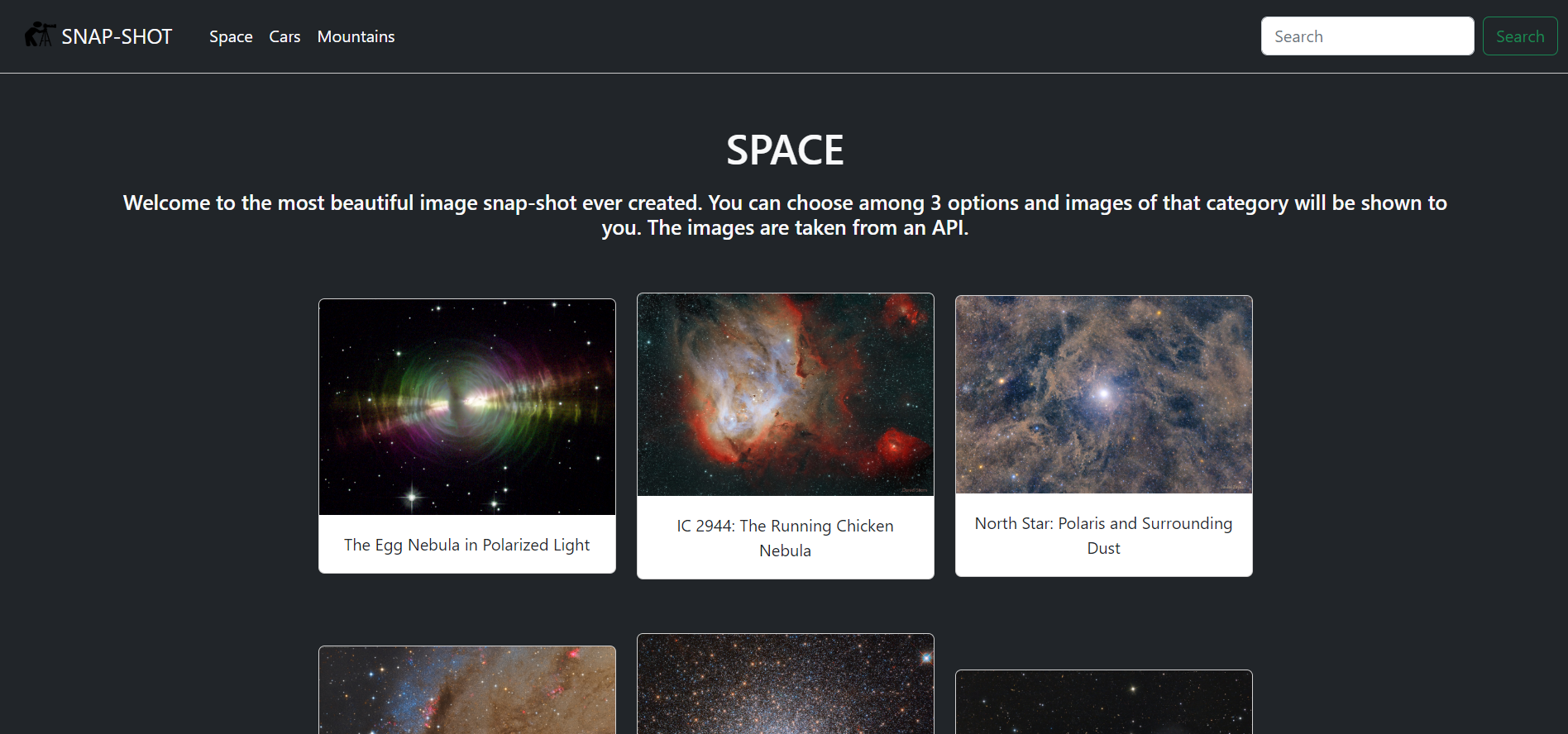

• Description: This endpoint will show the user 9 Space images from the NASA APOD API together with a title/short description.
• Modules: Navbar (SearchButton), Body (ImagesDisplay, ImageRow, NasaAPI), Footer

/Cars

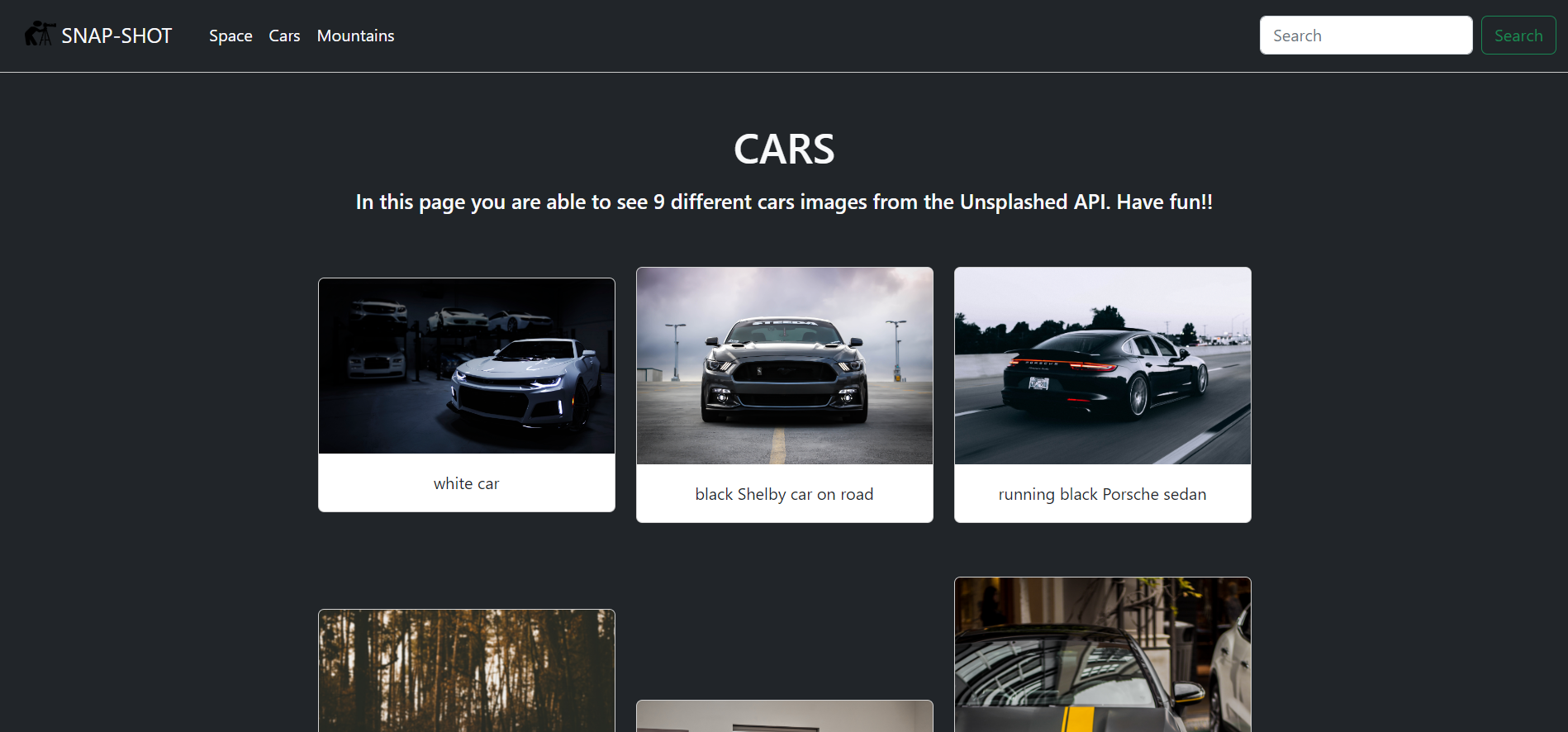

• Description: This endpoint will show the user 9 Cars images from the Unsplash API together with a title/short description.
• Modules: Navbar (SearchButton), Body (ImagesDisplay, ImageRow, UnsplashAPI), Footer

/Mountains

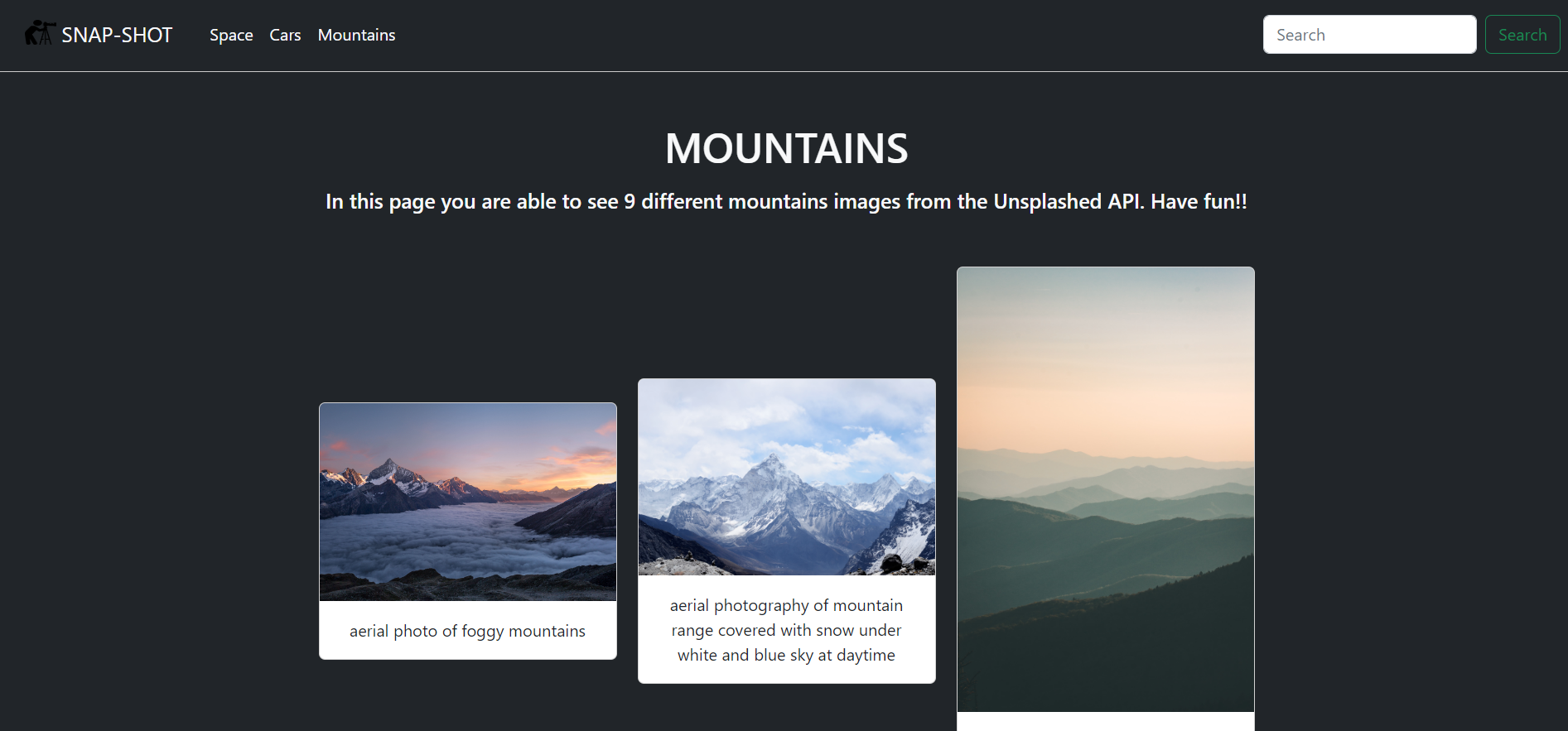

• Description: This endpoint will show the user 9 Mountains images from the Unsplash API together with a title/short description.
• Modules: Navbar (SearchButton), Body (ImagesDisplay, ImageRow, UnsplashAPI), Footer

Modules

---

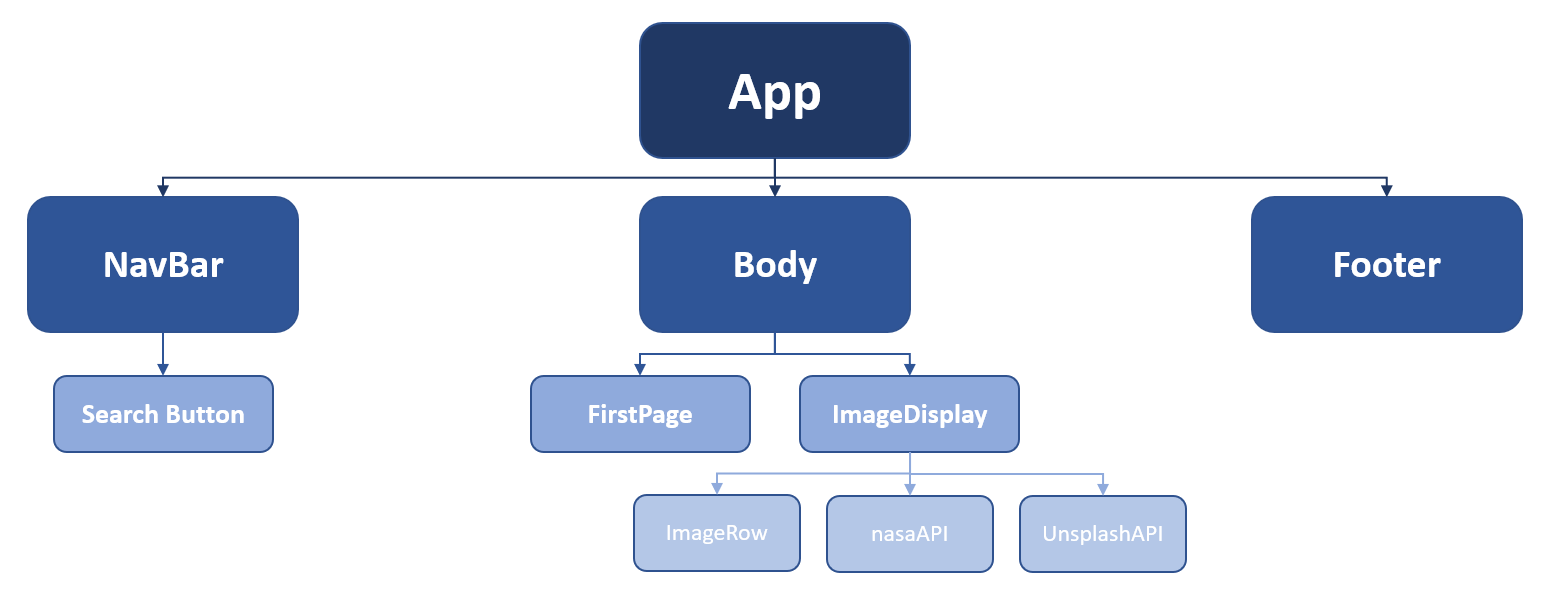

The architecture of the modules in this application are the following:

NavBar

• Description: This module returns the HTML for a bootstrap navbar. The Props make sure that it is able to return a navbar for any application with as many pages possible.
• Props:
  • barName: String representing the name of the application
  • appPicture: String link to the 'logo' that you want displayed in the navbar
  • barPages: String array with all the pages names that you want displayed in the navbar
  • barLink: String array with all the links to the barPages
• Dependencies: SearchButton

SearchButton

• Description: This module returns the HTML for a search bar button that let the user search for the page that is searching for.
• Props:
  • pages: String array with all the links to the pages in the website
• Dependencies: /

Body

• Description: This module returns the HTML for the body of the page. It is used for all the endpoints
• Props:
  • appTitle: Title of the page that will be displayed;
  • appDescription: Description of the page that will be displayed;
  • firstPage: yes/no string that is used to differentiate the / endpoint to the others;
  • imagesType: string to differentiate between the Cars and Mountains endpoint;
• Dependencies: FirstPage, ImageDisplay

FirstPage

• Description: This module returns the HTML for a series of cards that explain what the user should expect if decide to press them.
• Props:
  • imagesTitle: string array with the title of the pages that will be displayed
  • imagesLink: string array with the link of the images that will be displayed
  • imagesPageLink: string array with the link of the page descripted
  • imagesDescription: string array with the description of the page that will be rendered if pressed on the button
• Dependencies: /

ImageDisplay

• Description: This module returns the HTML for a series of cards that explain what the user should expect if decide to press them.
• Props:
  • imagesType: string that defines what type of pictures should be displayed
• Dependencies: ImageRow, NasaAPI, UnsplashAPI

ImageRow

• Description: This module returns the HTML for a series of 3 cards with an image and a short description of it
• Props:
  • imagesDescription: string array with the short description of the images in imagesLink
  • imagesLink: string array with the link of the images that will be displayed
• Dependencies: /

NasaAPI

• Description: JavaScript file exported with a declaration file exporting 2 functions that are needed to get the short descriptions and links to the images
• Props: /
• Dependencies: /

UnsplashAPI

• Description: JavaScript file exported with a declaration file exporting 2 functions that are needed to get the short descriptions and links to the images
• Props: /
• Dependencies: /

Footer

• Description: Returns the HTML for a footer, including a copyright notice and the link to a the pages in the website
• Props:
  • companyName: string representing the name of the company/person of the website
  • footerPages: string array representing the name of the pages that you want to display
  • footerLink: string array representing the links of the pages in footerPages
• Dependencies: /
