ApexCharts Card – Zonneplan Electricity Prices (Home Assistant)

This repository is a custom fork of apexcharts-card by @RomRider for Home Assistant, focused on visualizing Zonneplan electricity prices and dynamic energy tariffs for Home Assistant users in the Netherlands. It adds interactive features such as drag-to-pan, viewport persistence, per-bar price color thresholds, and compact hour-based tooltips—making it easier to identify cheap and expensive hours at a glance.

This project is an independent fork and is not affiliated with Zonneplan or the upstream ApexCharts Card project.

All original apexcharts-card functionality is 100% preserved. You can use this fork exactly as you would the upstream version—new features are optional and only enabled when explicitly configured.

Mobile-friendly advantage: Unlike Plotly-based Zonneplan charts, ApexCharts' touch interactions and tooltips work reliably on mobile devices—no hover-state limitations.

Table of Contents

• Use cases
• Installation
• Required integration
• Setup
• Examples
• Fork-only features
• Feature Documentation
  • Drag-to-Pan + Viewport Persistence
  • Per-Bar Color Thresholds
  • Tooltip Template
  • Y-Axis Minimum Padding
  • Per-Series Header Color
• Status / Known limitations
• Compatibility
• Upstream documentation
• License

Use cases

• Visualize Zonneplan electricity prices per hour in Home Assistant
• Identify the cheapest and most expensive tariff windows
• Explore 24–48h energy price forecasts interactively
• Optimize appliance usage based on dynamic electricity pricing

Installation

Download: Get apexcharts-card.js from the Releases page or build from source with npm run build (output in dist/apexcharts-card.js).

Option A — HACS (recommended)

1. HACS → Frontend → ⋮ → Custom repositories
2. Add: https://github.com/<you>/<repo>
3. Category: Lovelace
4. Install → Restart Home Assistant
5. Add resource: /hacsfiles/<repo-name>/apexcharts-card.js (type: module)

Option B — Manual

1. Copy apexcharts-card.js to /config/www/ (so it becomes /local/apexcharts-card.js)
2. Add Lovelace resource: /local/apexcharts-card.js (type: module)
3. Restart Home Assistant (or reload resources)

Required integration

• Zonneplan One – provides sensor.zonneplan_current_electricity_tariff with forecast data.

Setup

1. Install Zonneplan One and confirm the tariff sensor exists.
2. Paste one of the examples below into a Manual card and adjust entity IDs/colors.

Examples

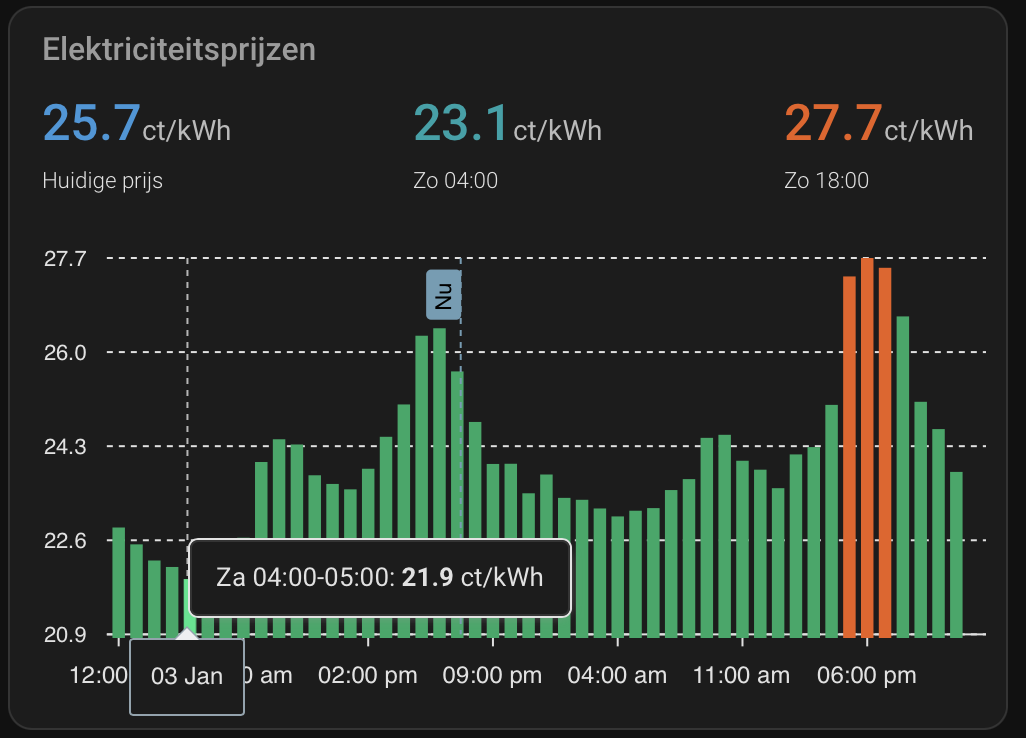

Zonneplan electricity forecast (48h)

type: custom:apexcharts-card
graph_span: 48h
span:
  start: day
cache: false
stacked: false
now:
  show: true
  label: Nu
header:
  show: true
  title: Elektriciteitsprijzen
  show_states: true
  colorize_states: true
apex_config:
  chart:
    height: 250
series:
  - entity: sensor.zonneplan_current_electricity_tariff
    type: column
    name: Prognose
    unit: ct/kWh
    float_precision: 1
    show:
      in_chart: true
      in_header: false
    color_thresholds:
      - lt: 20
        color: "#00a3a9"
      - lt: 27
        color: "#00a964"
      - color: "#ed5e18"
    tooltip_template: "{day} {h1}-{h2}: <b>{value:.1f}</b> {unit}"
    data_generator: |
      const forecast = entity.attributes.forecast || [];
      return forecast.map((r) => [new Date(r.datetime).getTime(), (r.electricity_price / 10000000) * 100]);
  - entity: sensor.zonneplan_current_electricity_tariff
    name: Huidige prijs
    unit: ct/kWh
    float_precision: 1
    show:
      in_chart: false
      in_header: true
    transform: return x * 100;
  - entity: sensor.zonneplan_current_electricity_tariff
    name: Goedkoopste uur
    unit: ct/kWh
    float_precision: 1
    show:
      in_chart: false
      in_header: true
      header_color: "#00a3a9"
    data_generator: |
      const forecast = entity.attributes.forecast || [];
      if (forecast.length === 0) return [[Date.now(), 0]];
      let minItem = forecast[0];
      forecast.forEach((r) => {
        if ((r.electricity_price / 10000000) * 100 < (minItem.electricity_price / 10000000) * 100) {
          minItem = r;
        }
      });
      return [[Date.now(), (minItem.electricity_price / 10000000) * 100]];
    attribute: last_updated
  - entity: sensor.zonneplan_current_electricity_tariff
    name: Duurste uur
    unit: ct/kWh
    float_precision: 1
    show:
      in_chart: false
      in_header: true
      header_color: "#ed5e18"
    data_generator: |
      const forecast = entity.attributes.forecast || [];
      if (forecast.length === 0) return [[Date.now(), 0]];
      let maxItem = forecast[0];
      forecast.forEach((r) => {
        if ((r.electricity_price / 10000000) * 100 > (maxItem.electricity_price / 10000000) * 100) {
          maxItem = r;
        }
      });
      return [[Date.now(), (maxItem.electricity_price / 10000000) * 100]];
yaxis:
  - id: main
    min: auto
    min_padding: 1

Minimal drag-pan + overscroll (scroll freely through the chart)

type: custom:apexcharts-card
graph_span: 24h
series:
  - entity: sensor.zonneplan_current_electricity_tariff
    type: column
    data_generator: |
      const forecast = entity.attributes.forecast || [];
      return forecast.map((r) => [new Date(r.datetime).getTime(), (r.electricity_price / 10000000) * 100]);
interaction:
  drag_pan: true
  persist_view: true
  persist_view_storage: localStorage
  reset_on_doubleclick: true
  overscroll:
    mode: soft
    factor: 1.5

Simple thresholds + tooltip template

type: custom:apexcharts-card
graph_span: 24h
series:
  - entity: sensor.zonneplan_current_electricity_tariff
    type: column
    unit: ct/kWh
    color_thresholds:
      - lt: 15
        color: "#00a964"
      - lt: 25
        color: "#f59e0b"
      - color: "#ef4444"
    tooltip_template: "{day} {h1}-{h2}: <b>{value:.1f}</b> {unit}"
    data_generator: |
      const forecast = entity.attributes.forecast || [];
      return forecast.map((r) => [new Date(r.datetime).getTime(), (r.electricity_price / 10000000) * 100]);
yaxis:
  - min: auto
    min_padding: 0.5

---

Fork-only features

The following configuration options are added by this fork and are not available in upstream apexcharts-card:

• interaction.drag_pan
• interaction.persist_view
• interaction.persist_view_storage
• interaction.reset_on_doubleclick
• interaction.view_id
• interaction.overscroll.*
• series.color_thresholds
• series.tooltip_template
• yaxis.min_padding
• series.show.header_color

Feature Documentation

Drag-to-Pan + Viewport Persistence

Drag horizontally to scroll through forecasts. Optionally remember scroll position across page reloads.

interaction:
  drag_pan: true
  persist_view: true
  persist_view_storage: localStorage  # or "memory" (default)
  reset_on_doubleclick: true          # double-click resets to default view
  view_id: "my-chart"                 # optional: stable storage key
  overscroll:
    mode: soft                         # or "none" (strict) / "infinite" (unlimited)
    factor: 1.5                        # soft mode: allows ±1.5× window beyond data

Use case: Zonneplan forecasts often span 48h; drag to explore cheapest/expensive hours.

---

Per-Bar Color Thresholds

Color individual bars based on their value, without needing multiple series.

series:
  - entity: sensor.zonneplan_current_electricity_tariff
    type: column
    color_thresholds:
      - lt: 20
        color: "#00a964"    # ≤20 ct/kWh: green (cheap)
      - lt: 30
        color: "#f59e0b"    # 20–30: amber
      - color: "#ef4444"    # >30: red (expensive)

Comparators: lt (less than) | lte | gt | gte | none (fallback color).

Use case: Quickly spot cheap/expensive tariff windows in a single column.

---

Tooltip Template

Compact, formatted tooltips with placeholders.

series:
  - entity: sensor.zonneplan_current_electricity_tariff
    tooltip_template: "{day} {h1}-{h2}: <b>{value:.1f}</b> {unit}"

Available Placeholders

Placeholder	Description	Example Output
{value}	Raw numeric value	23.456
{value:.1f}	Value with 1 decimal	23.5
{value:.2f}	Value with 2 decimals	23.46
{unit}	Series unit	ct/kWh, W, kWh
{day}	Weekday (short)	Ma, Di, Wo
{h1}	Hour start	14:00
{h2}	Hour end	15:00
{time}	Full time (HH:MM:SS)	14:23:45
{x}	Raw x-axis timestamp	1704294225000

Example Tooltip Templates

Energy tariff (hour range):

tooltip_template: "{day} {h1}-{h2}: <b>{value:.1f}</b> {unit}"
# Output: "Ma 14:00-15:00: 23.5 ct/kWh"

Solar power (precise time):

tooltip_template: "Today {time}: <b>{value:.1f}</b> {unit}"
# Output: "Today 14:23:45: 3.2 kW"

Simple value display:

tooltip_template: "<b>{value:.2f}</b> {unit}"
# Output: "23.46 ct/kWh"

Use case: Show tariff hour-by-hour clearly or display solar production with precise timestamps.

---

Y-Axis Minimum Padding

Add headroom below the computed minimum value.

yaxis:
  - min: auto
    min_padding: 1  # add 1 unit of padding below min

Note: Ignored if min is explicitly set (not auto).

Use case: Prevent bars from touching the bottom edge when minimum values are small.

---

Per-Series Header Color

Override the header text color for individual series.

series:
  - entity: sensor.zonneplan_current_electricity_tariff
    show:
      in_chart: false
      in_header: true
      header_color: "#00a964"  # force green, even if colorize_states is on

Use case: Highlight key series (e.g., cheapest hour in green, most expensive in red).

Status / Known limitations

This is a personal fork that targets a specific Zonneplan use case. While it is working for day-to-day usage, some parts may still be rough around the edges and you may encounter minor issues.

Vertical bar stacking issue (FIXED ✓)

Status: Fixed in current version via chart destruction and rebuild when stacked config changes.

Previously, bars would occasionally render stacked vertically on data updates due to ApexCharts internal render state corruption. The fix detects when the stacked configuration changes and fully destroys/recreates the chart instance with the correct configuration, ensuring a clean render state.

Verified: Tested extensively (40+ reloads with cache clears) with no recurrence.

Mobile tooltip lag (stale values)

On mobile devices, when rapidly tapping between bars, the tooltip may show a stale value from the previously selected bar instead of updating to the current selection.

Workarounds:

• Tap deliberately with brief pauses between selections to allow the tooltip to update
• Tap elsewhere on the dashboard to dismiss the tooltip, then tap the new bar (forces full refresh)

Technical details: This appears to be an ApexCharts internal behavior where the tooltip callback isn't invoked on rapid successive touch events—it gets debounced or cached. Attempted fixes:

• followCursor: false – reduces cursor tracking overhead
• hideDelay / showDelay adjustments – no improvement
• Custom tooltip refresh hooks – limited by ApexCharts API

The issue is under investigation. If you find a solution or workaround, please open an issue or PR.

Compatibility

This fork is based on upstream apexcharts-card and will likely not track upstream changes immediately. If you update Home Assistant or ApexCharts Card-related dependencies and something breaks, please open an issue on this repository (not upstream) and include your YAML and browser console logs.

Fork base: upstream apexcharts-card @ 6d3f1e9

Upstream documentation

For all standard options and comprehensive usage, see the original project: https://github.com/RomRider/apexcharts-card

License

This project is licensed under the MIT License.

Based on the original ApexCharts Card by Jérôme Wiedemann.
