The purpose of this assignment is to create a countdown from ten for a rocket launch. You need to use a Raspeberry Pi pico and VS Code.
Launch_Pad_Part:1 Code
import board
import time
import digitalio
while True:
for x in range(10, -1 ,-1):
time.sleep(1)
print(x)
if x == 0:
print('LAUNCH')Originally my code counted up from zero, but to create a negative intervol with the for function you need to start from a large number, go to a small number, but the second number will not be included in the count down. Then you need to create a negative intervol for the for loop. Additionally, the code needs to be uploaded to the Pico through code.py. To access it you need to go to File/Open File/CIRCUITPY (D:)/Code.py.
In this assignment you have to Countdown from 10 seconds to 0 (liftoff), and print that countdown to the serial monitor. Additionally, you must blink a red light each second of the countdown, and turn on a green LED to signify liftoff.
Launch Pad Part 2 (Lights) Code
import board
import time
import digitalio
ledRed = digitalio.DigitalInOut(board.GP0)
ledRed.direction = digitalio.Direction.OUTPUT
ledGreen = digitalio.DigitalInOut(board.GP1)
ledGreen.direction = digitalio.Direction.OUTPUT
count = 0
while True:
for x in range(10, -1 ,-1): # for loop, in range(FROM THIS NUM, TO THIS NUM, AT THIS INTERVOL)
if count == 0:
if x > 0:
print(x)
if x == 0:
print('LAUNCH')
ledGreen.value = True # LED ON
count = 1
ledRed.value = True #TIMED BLINK--
time.sleep(0.5) #--
ledRed.value = False #--
time.sleep(0.5) #--
else:
print('Countdown Finished')Problems I had were the light setup code, the direction of the lights, and preventing the code from printing 0:
- The light setup code requires a lot of folder retrieval from libraries. It confused me, but I looked it up and now its right.
- The direction of the lights is OUTPUT, make sure to specify otherwise whenever they turn on they won't and you'll get a positive value.
- The code prints 0 at the end of the count down, if I removed zero from the count down, it would be 9 seconds instead of 10, my solution was to print the number when x was greater than 0, simple solve, hours of pain.
This assignment uses the last assignment and you need to add a button so the countdown starts when the button is clicked, and then also add an abort option.
Launch Pad Part 3 (Button) Code
import board
import time
import digitalio
ledRed = digitalio.DigitalInOut(board.GP0)
ledRed.direction = digitalio.Direction.OUTPUT
ledGreen = digitalio.DigitalInOut(board.GP1)
ledGreen.direction = digitalio.Direction.OUTPUT
button_a = digitalio.DigitalInOut(board.GP15) # at GP15 because button interfeared with leds, refrence pico pinmap
button_a.direction = digitalio.Direction.INPUT
button_a.pull = digitalio.Pull.UP # requires only two wires one to ground and the other to pin, prevents excess wires. Definition of, "fix it in code".
while True:
if button_a.value == True:
time.sleep(0.1)# debounce
while button_a.value == false:
for x in range(10, -1 ,-1):
if x > 0:
print(x) # Prints for loop val
if x == 0:
print('LAUNCH')
ledGreen.value = True
time.sleep(0.1)
print('Countdown Finished!')
time.sleep(5)
ledRed.value = True #Blinks Light--
time.sleep(0.5) --
ledRed.value = False --
time.sleep(0.5) --
print('ABORT')# code accurs when button is true
quit() # quits script
else:
ledGreen.value = False
print('Waiting For Button')Three things that went wrong were the countdown debounce optimization, the abort button, and the buttons input pullup:
- If the debounce is too long, the code is really blocky and barely works, if its too short it auto aborts.
- The abort function took a while too find, still isn't 100% reliable, something about how the function stops the code doesn't always work on VS Code.
- The input pullup up took too long because the pins on the pico connect in weird ways so the "highways" can have multiple pins sprouting from them, but they can't receive more than one input.
Countdown from 10 seconds to 0 (liftoff). Print that countdown to the serial monitor. Blink a red light each second of the countdown, and turn on a green LED to signify liftoff. Include a physical button that starts the countdown. Actuate a 180 degree servo on liftoff to simulate the launch tower disconnecting.
Launch_Pad_Part_4_(Servo) Code
import board # Imports
import time -
import digitalio -
import pwmio -
from adafruit_motor import servo
pwm_servo = pwmio.PWMOut(board.GP22, duty_cycle=2 ** 15, frequency=50) # sets frequency of pin, idk how it works, visit(https://docs.circuitpython.org/en/latest/shared-bindings/pwmio/index.html)
redLED = digitalio.DigitalInOut(board.GP0)
greenLED = digitalio.DigitalInOut(board.GP1)
button = digitalio.DigitalInOut(board.GP15)
redLED.direction = digitalio.Direction.OUTPUT
greenLED.direction = digitalio.Direction.OUTPUT
button.direction = digitalio.Direction.INPUT
button.pull = digitalio.Pull.UP
servo1 = servo.Servo(pwm_servo, min_pulse=500, max_pulse=2500) # this sets the allowed pulses and also creates an object in code
servo1.angle = 0 #setting initial values
count = 0
while True:
print('waiting for button')
if button.value == False:
count = 10
while count > 3:
print(count)
redLED.value = True
count = count - 1
time.sleep(.5)
redLED.value = False
time.sleep(.5)
while count > 0 & count <= 3: # begins turning servo
print(count)
redLED.value = True
count = count - 1
for x in range(10):
servo1.angle = servo1.angle + 3
time.sleep(.05)
redLED.value = False
for x in range(10):
servo1.angle = servo1.angle + 3
time.sleep(.05)
if count == 0:
print("launch")
greenLED.value = True
servo1.angle = 180
time.sleep(5)Three things went wrong with this assignment:
- The servo spinning is very blocky if you chunk the code and move the servo x degrees every loop. So instead I spent 2 classes making it smooth by creating delays and timed intervol and moved it three degrees at a time.
- The abort button was difficult to employ, so, sense it isn't required, I deleted it.
- when you ask an object what its value is, you have to type: object.value
In this assignment you have to wire an accelerometer and print it's values as it's collecting them.
Crash Avoidance Part 1 (Accelerometer) Code
import adafruit_mpu6050 # Imports
import busio -
import board -
import time -
import digitalio -
sda_pin = board.GP14 # Defining SDA and SCL pins
scl_pin = board.GP15 -
i2c = busio.I2C(scl_pin, sda_pin) # defining i2c function
mpu = adafruit_mpu6050.MPU6050(i2c)
while True:
print("My Values:") # Printing values
print(mpu.acceleration) -
time.sleep(1)There are three things that went wrong:
- Units: They're in m / s^2. If you're printing units make sure to add that.
- Wiring: SDA and SCL are located on the GP14 and GP15 wires respectfully.
- Direction: The board has the directions its facing written on it.
The module must have an accelerometer that continuously reports x, y, and z acceleration values. The module must have an LED that turns on if the helicopter is tilted to 90 degrees. The module must be powered by a mobile power source.
Crash Avoidance Part 2 (Light + Power) Code
import adafruit_mpu6050
import busio
import board
import time
import digitalio
led = digitalio.DigitalInOut(board.GP0) # pin setup
led.direction = digitalio.Direction.OUTPUT --
sda_pin = board.GP14 --
scl_pin = board.GP15 --
i2c = busio.I2C(scl_pin, sda_pin) --
mpu = adafruit_mpu6050.MPU6050(i2c) # i2c, idk how it works, look here, https://adafruit.github.io/Adafruit_MPU6050/html/class_adafruit___m_p_u6050.html
while True:
led.value = False
print(mpu.acceleration)
while mpu.acceleration[2] < 0.95: # mpu.acceleration[2], value of only the z axis
led.value = True
print(mpu.acceleration) # prints all acceleration valuesTwo things went wrong with this assignment:
- I used the wrong function. I was using mpu.gyro, which measures acceleration of rotation. The correct way to do this was to measure the acceleration based on gravity.
- I put the less than symbol the wrong way. The acceleration of gravity on the y axis is greater than .95 UNTIL it reaches about a 90* tilt.
In this assignment the The module must have an accelerometer that continuously reports x, y, and z acceleration values. The module must have an LED that turns on if the helicopter is tilted to 90 degrees. The module must be powered by a mobile power source. The module must have an onboard screen that prints x, y, and z angular velocity values (rad/s) rounded to 3 decimal places.

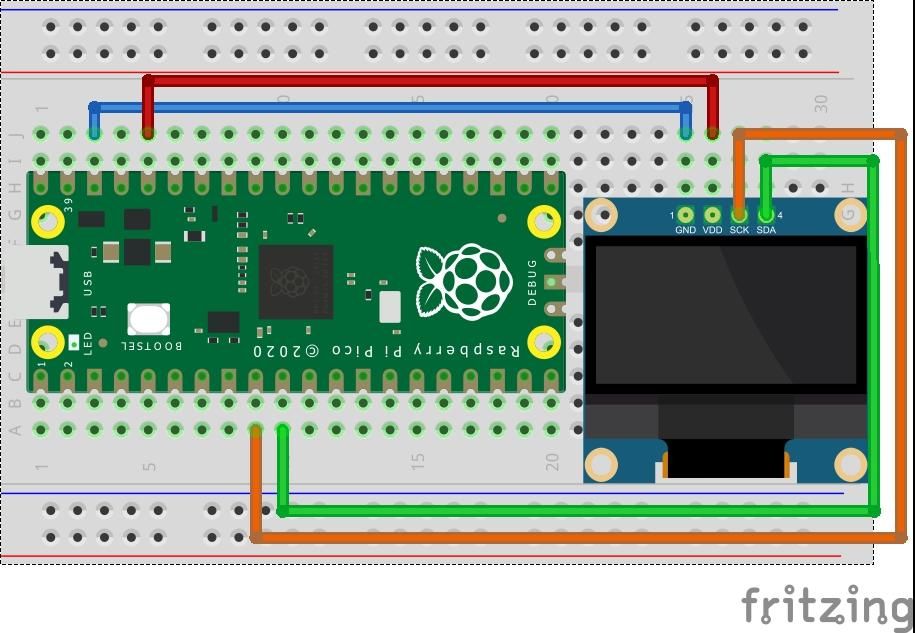

Crash_Avoidance_Part_3_(OLED_Screen) Code
import adafruit_mpu6050 #Imports:--
import busio #--
import board #--
import time #--
import digitalio #--
from adafruit_display_text import label #--
import adafruit_displayio_ssd1306 #--
import terminalio #--
import displayio #--
displayio.release_displays() #initializes displays
sda_pin = board.GP14 #init SDA pin
scl_pin = board.GP15 #init SCL pin
i2c = busio.I2C(scl_pin, sda_pin)
display_bus = displayio.I2CDisplay(i2c, device_address=0x3d, reset=board.GP16)
display = adafruit_displayio_ssd1306.SSD1306(display_bus, width=128, height=64)
mpu = adafruit_mpu6050.MPU6050(i2c, address=0x68)
led = digitalio.DigitalInOut(board.GP0)
led.direction = digitalio.Direction.OUTPUT
# create the display group
splash = displayio.Group()
# add title block to display group
title = "ANGULAR VELOCITY"
text_area = label.Label(terminalio.FONT, text=title, color=0xFFFF00, x=5, y=5)
splash.append(text_area)
display.show(splash)
while True:
# the order of this command is (font, text, text color, and location)
text_area.text = f"Rotation: \n X:{round(mpu.gyro[0],3)} \n Y:{round(mpu.gyro[1],3)} \n Z:{round(mpu.gyro[2],3)}"
led.value = False
print(mpu.acceleration)
while mpu.acceleration[2] < 0.95:
led.value = True
print(mpu.acceleration)
text_area.text = f"Rotation: \n X:{round(mpu.gyro[0],3)} \n Y:{round(mpu.gyro[1],3)} \n Z:{round(mpu.gyro[2],3)}"Three Things went Wrong:
- the fString. If you want to format an fString go to this site: adafruit/circuitpython#4723
- The I2C adresses. Adding another adress to the I2C mixed everything up. I didn't have enought space on the bread board so I had to move some pins around, in turn, this messed up my wiring and I had to redo it.
- Finding the I2C adress. The code for this is located here. It took a while to get the wiring right.
The module must have an accelerometer that continuously reports x, y, and z acceleration values. The module must have an LED that turns on if the helicopter is tilted to 90 degrees. The module must be powered by a mobile power source. The module must have an onboard screen that prints x, y, and z angular velocity values (rad/s). The module should NOT show a warning light if the device is more than 3 meters above its starting point.
Crash Avoidance Part 4 (Altimeter) Code
import adafruit_mpu6050
import busio
import board
import time
import digitalio
from adafruit_display_text import label
import adafruit_displayio_ssd1306
import terminalio
import displayio
import adafruit_mpl3115a2
displayio.release_displays()
sda_pin = board.GP14
scl_pin = board.GP15
i2c = busio.I2C(scl_pin, sda_pin)
display_bus = displayio.I2CDisplay(i2c, device_address=0x3d, reset=board.GP16)
display = adafruit_displayio_ssd1306.SSD1306(display_bus, width=128, height=64)
mpu = adafruit_mpu6050.MPU6050(i2c, address=0x68)
led = digitalio.DigitalInOut(board.GP0)
led.direction = digitalio.Direction.OUTPUT
sensor = adafruit_mpl3115a2.MPL3115A2(i2c, address=0x60)
# create the display group
splash = displayio.Group()
# add title block to display group
title = "ANGULAR VELOCITY"
text_area = label.Label(terminalio.FONT, text=title, color=0xFFFF00, x=5, y=5)
splash.append(text_area)
display.show(splash)
tim = sensor.altitude
while True:
# the order of this command is (font, text, text color, and location)
text_area.text = f"Rotation: Altitude: \n X:{round(mpu.gyro[0],3)} {round(sensor.altitude, 3)}m \n Y:{round(mpu.gyro[1],3)} Pressure: \n Z:{round(mpu.gyro[2],3)} {round(sensor.pressure, 3)}Pa"
print(mpu.acceleration)
if mpu.acceleration[2] < 0.95 and sensor.altitude < tim + 3:
led.value = True
else:
led.value = False
Two Things Went Wrong:
- The wiring: I Stripped everything before taking a video.
- I couldn't get the I2C function to work, the problem was the wiring, make sure that the GND rail on your breadboard is connected to GND on your pico.
Write your assignment description here. What is the purpose of this assignment? It should be at least a few sentences.
Create a link to your Onshape document. Don't forget to turn on link sharing in your Onshape document so that others can see it.
Take a nice screenshot of your Onshape document.
What went wrong / was challenging, how'd you figure it out, and what did you learn from that experience? Your goal for the reflection is to pass on knowledge that will make this assignment better or easier for the next person. Think about your audience for this one, which may be "future you" (when you realize you need some of this code in three months), me, or your college admission committee!
A beam must stick straight out from a predetermined platform, and the beam gets a bucket screwed into the side of it, then weight gets added. You need to maximize the ammount of weight that that bucket can hold. This is constrained by these contraints:
- The beam must use the provided attachment block with no modifications
- The beam with the attachment block must be able to fully engage with the holder
- The beam must use the example eye bolt mounting geometry
- The center of the eyebolt hole must be 180 mm from the front face of the attachment block (in a direction perpendicular to the front face)
- No part of the beam may extend below the bottom face of the attachment block
- All vertical angles must be >= 45° measured relative to the horizontal plane (no overhangs)
- The beam must be PLA material
- The entire beam, including attachment block, must weight <= 13 grams
Create a link to your Onshape document
For this assignment, three things went wrong:
- The weight of the object was way too large, so we took advantage of the fact that the nozel is 0.04mm. We removed a 0.03mm layer so that the computer would think that it weighs less than it actually does.
- We had too much weight again, so this time we filleted the edges down.
- Originally, the document was unable to be copyed, so we spent a portion of the first class trying to export the object and import it into our own doc which eventually failed because STEP files dont save individual parts, so we couldnt accuratly measure weight.
For this assignment we were instructed to take our previous part and use FDA to analyse the stress on our part. We Examined the beams we just created in Onshape, and try to optimize the beam in two ways. Our goal was to minimize beam bending while maximizing the mass the beam can support before failing.
The FDA simulation forced us to make a big decision fix our curent design or scrap it and start over with the new information we have learned. We decided to do both and redesign the previous part in a new part studio with some new additions. This proved to be the most efective path as we where much faster in creating the new part. Unfortunatly, this was a group project and one of the two groupmates, Jakob, didn't manage to help.
After simulation, you should have an idea of where your beam needs to improve. Now you’ll enter the iterative design cycle. Improve the beam based on your findings from the FEA simulation, then simulate again. You should be able to dramatically reduce the maximum stress and bending of the beam over the course of several simulations and redesigns.
ENGR4 Beam Starter Document - Graham and Jacob
Three things went wrong:
- When creating the force, the window that pops up prompt you for a direction based on a mate connecter, an instance and the option to load a region. LOAD THE REGION, without any regions loaded, my design holds 25 lbs of force, but with the loading it holds 5.
- Holes in designs are very useful, sense the restrictions were revolved around us not being allowed to create overhangs over 45*, I was at a loss as to how to make the design better, but, we're allowed to use holes at the maximum size of 5mm. These holes take away unnessisary material and allow you to use it elsewhere.
- Corners of builds are considered breakpoints, this is because all of the stress is compiled into one small edge. Use the fillet tool to reduce this problem, but not the chamfer because that tool doesnt allow for curveness, and that's a nesesity for structural integrity.
Improvments:
- N/A, our sedign in more complicated and gholds the same weight due to an unfortunate mishap.
- Designing speed, I spent 8 hours designing this incorrectly, I learned how to OnShape faster and thats it.
In this assignment you had to make a computer calculate the area of a triangle based off of three inputed coordanites.
Landing Area Part 1 (Functions) Code
import time # imports
x1 = 0 # variable values
x2 = 0 -
x3 = 0 -
y1 = 0 -
y2 = 0 -
y3 = 0 -
def triangle(x1, y1, x2, y2, x3, y3):# defininf function
try:
pointArray = Input.split(",")
x1 = float(pointArray[0]) # Points location in the array
y1 = float(pointArray[1]) -
x2 = float(pointArray[2]) -
y2 = float(pointArray[3]) -
x3 = float(pointArray[4]) -
y3 = float(pointArray[5]) -
p = (abs(x1*(y2-y3)+x2*(y3-y1)+x3*(y1-y2)))/2.0 # finding the area of the triangle
return p
except:
print("Uh Oh. Do it again.") #error message
p = 0
return p
while True:
Input = input("Points: ")# taking input from computer prompt
area = triangle(x1, y1, x2, y2, x3, y3)# calling defined function
if area == 0: # error for triangle not working
print("Are you sure thats a triangle?")
continue
else:
print("Here is yo area! " + str(area)) # writing the triangle areaThree things went wrong:
- To find the area of a triangle you have to find the absolute value of the number, line 17, you can't use "||" signs, instead you have to use the function abs().
- When taking inputs, you can spling the string into arrays using the object.split() function. This turns your points into ARRAYS, you still have to call the value based off of its location in the array.
- To print the points you have to turn them into strings otherwise the computer gets mad at you.
The code must ask for the user to input a set of three coordinates in (x,y) format The triangle area must be determined using a function If the user inputs coordinates incorrectly (letters or improper format) the code should return to the input stage, it should not throw an error or exit the script The triangle area must be printed to the screen in this format: “The area of the triangle with vertices (x,y), (x,y), (x,y) is {area} square km. The code must return to the input stage after printing the area, and wait for user input. An onboard OLED screen must plot each triangle on a graph relative to the base location.
Landing Area Part 1 (Functions) Code
import adafruit_display_shapes
import busio
import board
import time
import digitalio
from adafruit_display_text import label
import adafruit_displayio_ssd1306
import terminalio
import displayio
import adafruit_mpl3115a2
from adafruit_display_shapes.triangle import Triangle
from adafruit_display_shapes.line import Line
from adafruit_display_shapes.circle import Circle
displayio.release_displays()
sda_pin = board.GP14
scl_pin = board.GP15
splash = displayio.Group()
i2c = busio.I2C(scl_pin, sda_pin)
display_bus = displayio.I2CDisplay(i2c, device_address=0x3d, reset=board.GP16)
display = adafruit_displayio_ssd1306.SSD1306(display_bus, width=128, height=64)
x1 = 0
x2 = 0
x3 = 0
y1 = 0
y2 = 0
y3 = 0
title = "Graph"
text_area = label.Label(terminalio.FONT, text=title, color=0xFFFF00, x=5, y=5)
splash.append(text_area)
display.show(splash)
def triangle(x1, y1, x2, y2, x3, y3):
try:
sametriangle = False
if Input == Input:
sametriangle = True
pointArray = Input.split(",")
x1 = float(pointArray[0])
y1 = float(pointArray[1])
x2 = float(pointArray[2])
y2 = float(pointArray[3])
x3 = float(pointArray[4])
y3 = float(pointArray[5])
triangle = Triangle(int(x1) + 64, 32 - int(y1), int(x2) + 64, 32 - int(y2), int(x3) + 64, 32 - int(y3), outline=0xFFFFFF)
splash.append(triangle)
if sametriangle == True:
p = (abs(x1*(y2-y3)+x2*(y3-y1)+x3*(y1-y2)))/2.0
return p
except:
print("Uh Oh. Do it again.")
p = 0
return p
while True:
vline = Line(64, 0, 64, 64, color=0xFFFFFF)
hline = Line(0, 32, 128, 32, color=0xFFFFFF)
circle = Circle(64, 32, 2, outline=0xFFFFFF)
splash.append(circle)
splash.append(hline)
splash.append(vline)
Input = input("Points: ")
area = triangle(x1, y1, x2, y2, x3, y3)
if area == 0:
print("Are you sure thats a triangle?")
continue
else:
print("Here is yo area! " + str(area))Two things went wrong with this assignment:
- Plotting the verticies of the triangle has to be done in a certain way. You need to add 64 to the x value and subtract the y value from 32 because of how the boards coordanize system is setup.
- The SDA and SCL pins go to SDA and SCL on the pico, but you also have to use their i2c adress, especially if you made the mistake of using i2c. Its only useful to use adresses if there is more than one thing plugged into the pico through the same pins.
Your script must accept text input by the user If the user types “-q”, your script must exit If the user types anything else, your script must translate the text to morse code dots and dashes, and print those to the monitor The printed text must use a space to show breaks between letters, and a slash to show breaks between words
Morse Code Part 1 (Translation) Code
import board
import pulseio
import time
# Dictionary representing the morse code chart
MORSE_CODE = { 'A':'.-', 'B':'-...',
'C':'-.-.', 'D':'-..', 'E':'.',
'F':'..-.', 'G':'--.', 'H':'....',
'I':'..', 'J':'.---', 'K':'-.-',
'L':'.-..', 'M':'--', 'N':'-.',
'O':'---', 'P':'.--.', 'Q':'--.-',
'R':'.-.', 'S':'...', 'T':'-',
'U':'..-', 'V':'...-', 'W':'.--',
'X':'-..-', 'Y':'-.--', 'Z':'--..',
'1':'.----', '2':'..---', '3':'...--',
'4':'....-', '5':'.....', '6':'-....',
'7':'--...', '8':'---..', '9':'----.',
'0':'-----', ',':'--..--', '.':'.-.-.-',
'?':'..--..', '/':'-..-.', '-':'-....-',
'(':'-.--.', ')':'-.--.-', ' ':'/'}
while True:
Input = input()
x = Input.upper()
for letter in x:
print(MORSE_CODE[letter], end=" ")
if Input == str("-q"):
break- For the break function, there is a specific word that is used to break the code and stop its running. "break".
- The for function is vital for this code, the for loop is structured like this:
for x in y:
do thisYour script must accept text input by the user If the user types “-q”, your script must exit If the user types anything else, your script must translate the text to morse code dots and dashes, and print those to the monitor The printed text must use a space to show breaks between letters, and a slash to show breaks between words The script must flash an LED to transmit the morse code message using the timing sequence shown below
Morse Code Part 2 (Transmission) Code
import board
import pwmio
import time
buzzer = pwmio.PWMOut(board.GP17, duty_cycle=0, frequency=1440)
OFF = 0
ON = 2**15
DOT = 0.05
DASH = 3*DOT
# Dictionary representing the morse code chart
MORSE_CODE = { 'A':'.-', 'B':'-...',
'C':'-.-.', 'D':'-..', 'E':'.',
'F':'..-.', 'G':'--.', 'H':'....',
'I':'..', 'J':'.---', 'K':'-.-',
'L':'.-..', 'M':'--', 'N':'-.',
'O':'---', 'P':'.--.', 'Q':'--.-',
'R':'.-.', 'S':'...', 'T':'-',
'U':'..-', 'V':'...-', 'W':'.--',
'X':'-..-', 'Y':'-.--', 'Z':'--..',
'1':'.----', '2':'..---', '3':'...--',
'4':'....-', '5':'.....', '6':'-....',
'7':'--...', '8':'---..', '9':'----.',
'0':'-----', ',':'--..--', '.':'.-.-.-',
'?':'..--..', '/':'-..-.', '-':'-....-',
'(':'-.--.', ')':'-.--.-', ' ':'/'}
BEEP = {'.': DOT , '-': DASH}
while True:
Input = input()
x = Input.upper()
if Input == str("-q"):
break
for letter in x:
if letter == " ":
time.sleep(7*DOT)
print("/", end=" ")
continue
print(MORSE_CODE[letter], end=" ")
for pulse in MORSE_CODE[letter]:
# print(f"pulsing for {pulse} for letter {letter}")
buzzer.duty_cycle = ON
time.sleep(BEEP[pulse])
buzzer.duty_cycle = OFF
time.sleep(DOT)
time.sleep(3*DOT)
print()- I had some extra time and changed the light into a piezo buzzer, the only difference is the PMW. When using PMW make sure your duty cycle and frequency are consistent with your buzzer, otherwise, they won't work.
- The code turns the buzzer on waits for x time and then turns it off, this is more efficient than turning it on for a specific amount of time because I do not have to deal with time.monotonic.
- When coding, it helps to know that all the lengths in dots are based on the dot 0.25s. for efficiency sake, I made that 0.05s instead
Your Pico must operate in “headless” mode – unplugged from the computer with a battery An LED must turn on when the Pico is tilted (same as Crash Avoidance Part 2) Your Pico must record time, X, Y, Z acceleration data, and whether or not the Pico was tilted You must save this information to the Pico’s onboard storage You must blink the onboard LED every time you save data You must be able to retrieve this data when plugged back into the computer
Data Part 1 (Storage) Code
import adafruit_mpu6050
import busio
import board
import time
import digitalio
led = digitalio.DigitalInOut(board.GP20)
led.direction = digitalio.Direction.OUTPUT
sda_pin = board.GP14
scl_pin = board.GP15
i2c = busio.I2C(scl_pin, sda_pin)
mpu = adafruit_mpu6050.MPU6050(i2c)
st = time.monotonic()
tilt = False
while True:
with open("/data.csv", "a") as datalog:
ct = time.monotonic()
if mpu.acceleration[2] < 9:
led.value = True
tilt = True
else:
led.value = False
tilt = False
datalog.write(f"{float(ct)},{round(mpu.gyro[0],3)},{round(mpu.gyro[1],3)},{round(mpu.gyro[2],3)},{str(tilt)},{mpu.acceleration[2]}\n")
time.sleep(0.5)
datalog.flush()Three things went wrong:
- When trying to edit the code. You have to restart the pico and turn it to "code mode" otherwise you get an error that explains how stupid you are for trying to write in a read only file type.
- When using an fString to write your data, refrenece this
- It is very important to keep clean wiring, my wiring was very iffy and i got my board reset multiple times on end.
Create a line graph with time on the X axis and acceleration on the Y axis. X, Y, and Z accelerations must be present on the same plot. Create a chart with time on the X axis and whether or not the Pico was tilted on the Y axis. Title each graph, and label each axis including units.
Two things went wrong:
- I tried to use Excel, don't use excel.
- When making the chart, make sure that the units are clear. For example, I used degrees/second for my acceleration of rotation, but its very possible to mess that up by saying theyre radians.
Your readme will have various images and gifs on it. Upload a test image and test gif to make sure you've got the process figured out. Pick whatever image and gif you want!
