Ticket Master - MING HUNG Version

Ticket Master is a high-performance ticket reservation system capable of processing 1,000,000 reservations within 12 seconds.

The system is built on Kafka Streams, providing:

• Stateful Stream Processing: Utilizes RocksDB as the state backend for efficient state read/write operations.
• Exactly-Once Processing Semantics: Ensures data consistency even in the presence of failures.
• Horizontal Scalability: Scales seamlessly with the number of Kafka topic partitions.
• State Querying: Supports Interactive Queries to directly access the application’s local state store.

I published three Medium stories to introduce this system:

• Part 1: Dataflow Architecture
• Part 2: Data-Driven Optimizations
• Part 3: Infra, Observability, Load Test

Architecture

The system adopts Dataflow architecture, originally introduced in Designing Data-Intensive Applications, consisting of:

• Ticket Service: Acts as the API gateway, handling users’ HTTP requests and forwarding reservation requests to the stream processing system.
• Reservation Service: Kafka Streams application that manages the reservation state.
• Event Service: Kafka Streams application that manages the event and section availability state.

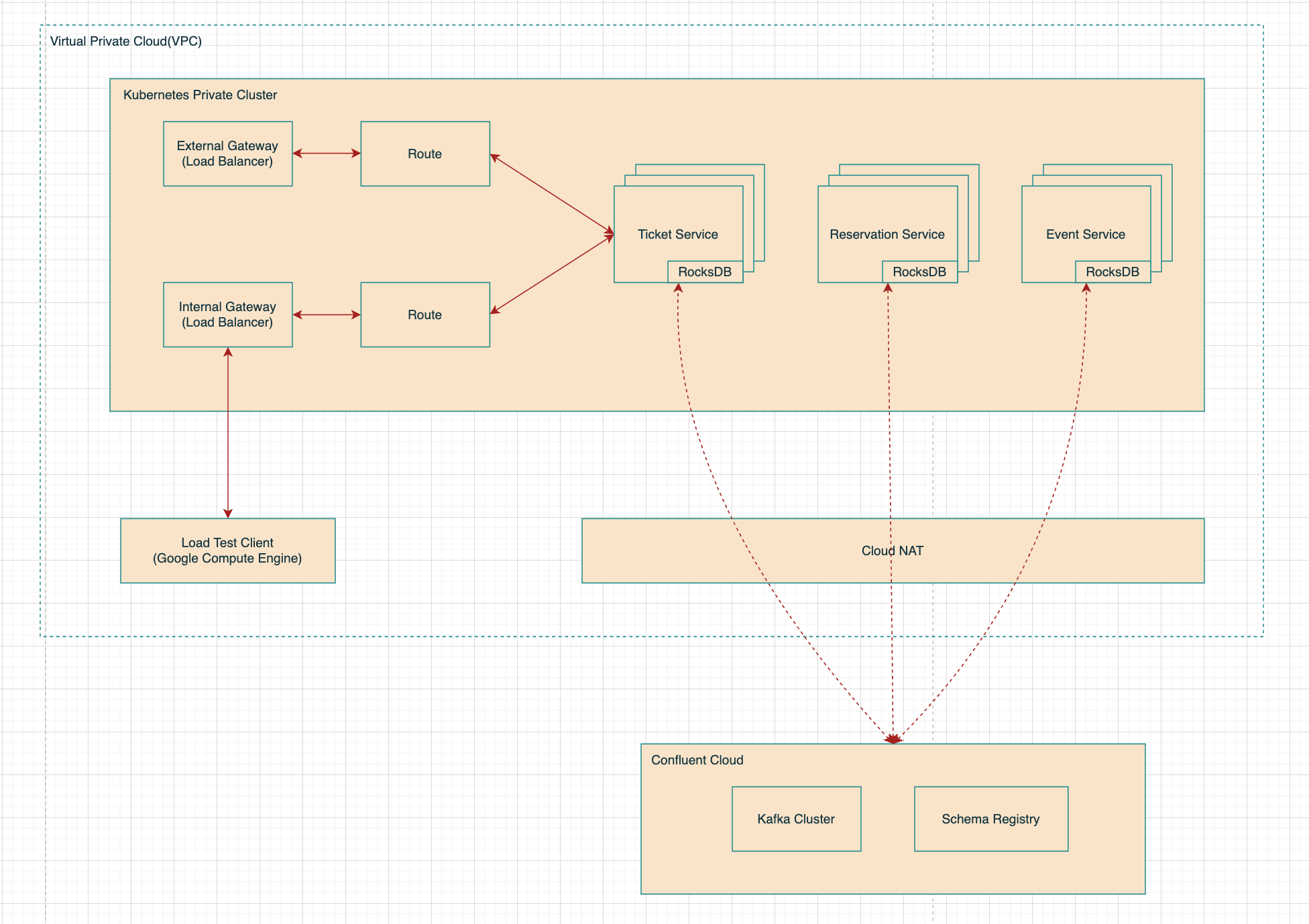

Architecture Diagram

Observability

Traces / Metrics

• Powered by OpenTelemetry Java Agent.
• Collected via OTLP Collector and exported to Google Cloud Trace.

Log

Logs are written to standard output and collected using GKE's native logging support.

Deployment

CI/CD Pipeline

1. Tag Push to GitHub
2. Trigger Cloud Build for Testing
   Cloud Build is triggered by the tag push. It runs unit and integration tests using:

   mvn test

3. Build and Push Docker Image
   If all tests pass, Cloud Build builds a Docker image using the Git tag as the image version, then pushes it to Artifact Registry.

Deploy

1. (Optional) Create or update the Kubernetes overlay in deployment/k8s-configs/overlays(example)
2. (Optional) Overwrite application config under the newly created directory.
3. Run:

make deploy -e PARTITIONS_COUNT=40 -e PERF_TYPE=40-instance-perf

• PARTITIONS_COUNT: Number of partitions for Kafka topics.
• PERF_TYPE: Name of overlay folder used in deployment.

Destroy

make destroy -e PERF_TYPE=40-instance-perf

• PERF_TYPE: Name of overlay folder used in deployment.

Load Test

Get Gateway IP

kubectl get gateway

NAME            CLASS                              ADDRESS         PROGRAMMED   AGE
external-http   gke-l7-regional-external-managed   35.206.193.99   True         14m
internal-http   gke-l7-rilb                        10.140.0.41     True         14m

You can run a load test from:

1. The Local machine sends requests to the external-http IP address.
2. The Google Compute Engine within the same VPC, send requests to the internal-http IP address.

Smoke Test

The objective of the smoke test is to

1. Verify that the setup is free of basic configuration or runtime errors.
2. Allow the system to initialize and establish connections with Kafka and the Schema Registry.

# under scripts/perf/k6/ directory.
k6 run smoke.js -e HOST_PORT=[IP_ADDRESS] -e NUM_OF_AREAS=40

• HOST_PORT: IP address of ticket service(gateway address in kubernetes deployment).
• NUM_OF_AREAS: Number of areas for each event.

Stress Test

The objective of the stress test is to

1. See the performance under high traffic over a specific duration.
2. Warm up the components for the spike test.

# under scripts/perf/k6/ directory.
k6 run stress.js -e HOST_PORT=[IP_ADDRESS] -e NUM_OF_AREAS=40

• HOST_PORT: IP address of ticket service(gateway address in kubernetes deployment).
• NUM_OF_AREAS: Number of areas for each event.

Spike Test

Spike testing is critical for ticketing systems, as traffic typically surges immediately after ticket sales begin.

# under scripts/perf/go-client directory.
go run main.go --host [IP_ADDRESS] -a 100 -env prod --http2 -n 250000 -c 4

• --host: IP address of ticket service(gateway address in kubernetes deployment).
• -a: number of areas for this event.
• --env: prod would dismiss the logging.
• --http2: If present, would send traffic using HTTP/2.
• -n: number of concurrent requests.
• -c: number of HTTP clients. It aims to solve lock contention in high concurrency scenarios.

Profiling

Java application in Kubernetes

1. Get the pod name by kubectl get pods.
2. Enter the pod by kubectl exec --stdin --tty [POD_NAME] -- /bin/bash
3. Inside the pod:
   1. Download java jdk:

   wget https://download.oracle.com/java/24/latest/jdk-24_linux-x64_bin.deb
   dpkg -i jdk-24_linux-x64_bin.deb


   2. Start profiling the application with the following command:

   jcmd 1 JFR.start duration=60s filename=/tmp/recording.jfr settings=/usr/lib/jvm/jdk-24.0.1-oracle-x64/lib/jfr/profile.jfc


4. Download the recording file from the pod:

kubectl cp [POD_NAME]:/tmp/recording.jfr recording.jfr --retries 999

5. Open the JFR recording with JDK Mission Control

Go Client

1. Run spike test with the following flags:

 --cpuprofile file, --cpu file      write cpu profile to file
 --memprofile file, --mem file      write memory profile to file
 --blockprofile file, --block file  write block profile to file
 --lockprofile file, --lock file    write lock profile to file

2. Visualize profiles:

pprof -web [PROFILE_FILE_PATH]

Local Development

prerequisite

• Docker Desktop
• Java
• Opentelemetry Java agent: The following examples put the agent under otel/ directory.

Local Infra

docker compose up -d

This would start

• Kafka(KRaft mode)
• Schema Registry: RESTful interface for storing and retrieving Avro schemas.
• Jaeger: Distributed tracing observability platforms.
• Kafdrop: Kafka Web UI for viewing Kafka topics and browsing consumer groups.
• Applications:
  • Ticket Service
  • Reservation Service
  • Event Service

Test

./mvnw test

This command runs both unit and integration tests. For local load test, see Load Test.

Update Avro

1. Add or Update .avro files under ./src/main/resources/avro
2. Run ./mvnw generate-sources to generate the corresponding Java classes.

Opentelemetry Configurations

The following properties can be configured by setting environment variables or via the -D flag

• OTEL_EXPORTER_OTLP_ENDPOINT: The Jaeger endpoint.
• OTEL_SERVICE_NAME: The service name included in the spans.
• OTEL_TRACES_SAMPLER: The sampler described here.
• OTEL_TRACES_SAMPLER_ARG: Sampling rate described here.

Suggested JVM options

-XX:+UseZGC -XX:+ZGenerational -Xmx2G -Xms2G -XX:+AlwaysPreTouch

We recommend using the Z Garbage Collector to minimize pause times and ensure low latency.

• -XX:+UseZGC -XX:+ZGenerational: Configure JVM to use ZGC.
• -Xmx2G -Xms2G: Setting the same value to reduce time for memory allocation.
• -XX:+AlwaysPreTouch: Page in memory before the application starts.

Build

./mvnw clean package

Use maven-shade-plugin to build an uber-jar.

Ticket Service

java -javaagent:./otel/opentelemetry-javaagent.jar \
-Dotel.service.name=ticket-service \
-cp target/ticket-master-1.0-SNAPSHOT-shaded.jar \
lab.tall15421542.app.ticket.Service -p 8080 -d ./tmp/ticket-service/ -n 0 \
-c appConfig/client.dev.properties \
-pc appConfig/ticket-service/producer.properties \
-sc appConfig/ticket-service/stream.properties \
-r

• -n: The maximum of virtual threads used by Jetty. 0 means unlimited.
• -p: The HTTP port of the ticket service.
• -d: Directory path for storing state.
• -c: Config file path for Kafka and schema registry connectivity properties.
• -pc: Config file path for Kafka producer properties.
• -sc: Config file path for Kafka Streams properties.
• -r: If present, enable the request log.
• -a: Specify the number of Jetty acceptors.
• -s: Specify the number of Jetty selectors.

Reservation Service

java -javaagent:./otel/opentelemetry-javaagent.jar \
-Dotel.service.name=reservation-service \
-cp target/ticket-master-1.0-SNAPSHOT-shaded.jar \
lab.tall15421542.app.reservation.Service \
-c appConfig/client.dev.properties \
-sc appConfig/reservation-service/stream.properties \
-d ./tmp/reservation-service

• -c: Config file path for Kafka and schema registry connectivity properties.
• -sc: Config file path for Kafka Streams properties.
• -d: Directory path for storing state.

Event Service

java -javaagent:./otel/opentelemetry-javaagent.jar \
-Dotel.service.name=event-service \
-cp target/ticket-master-1.0-SNAPSHOT-shaded.jar \
lab.tall15421542.app.event.Service \
-c appConfig/client.dev.properties \
-sc appConfig/event-service/stream.properties \
-d ./tmp/event-service

• -c: Config file path for Kafka and schema registry connectivity properties.
• -sc: Config file path for Kafka Streams properties.
• -d: Directory path for storing state.

Tracing - Jaeger

open http://localhost:16686/

Kafdrop

open http://localhost:9000/
