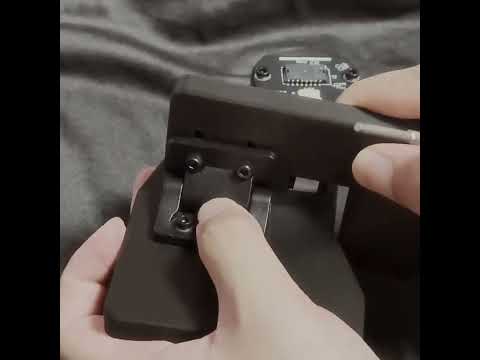

A case designed for Crosses, allowing adjustments to the tenting angle, thumb cluster offset, and trackball position.
- Only supports a 3x5 key matrix.
- 3x5 Matrix Case
- Thumb Cluster Case
- Top Part of the Trackball Stand
All parts are designed based on the right-hand side. If needed, mirror them for the left side.
Fillets have been optimized for FDM 3D printing.
Only lists additional components required (A SIDE)
-
M3x5mm screws × 4
-
M3x3mm threaded insert × 1
-
M3 Hex Nut x 4 (Best: Width 5.5mm, Height 2.5mm)
-
140mm FFC cable
-
Hinge (Lockable recommended)
- Finding the exact part may be difficult. Please compare the dimensions provided and choose accordingly.
- Source: Taobao
